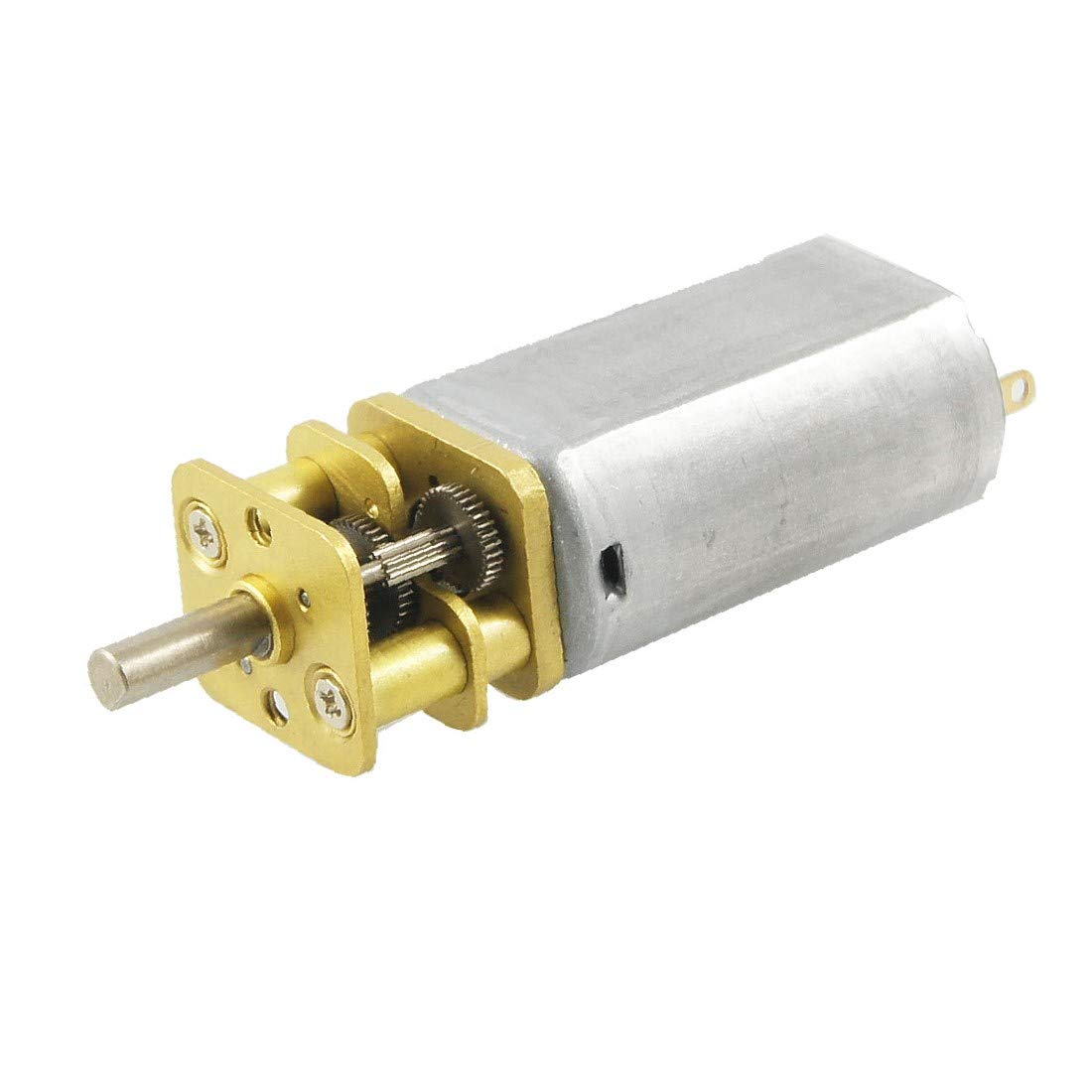

DC Motor 13GA-030 3V 150rpm

The DC Motor 13GA-030 3V 150rpm is a small DC gear motor rated for 3 V, with an output speed of 150 rpm, or 2.5 turns per second. The geared output gives a controlled speed from a low supply voltage, so it works well in small robot cars, turntables and toy models powered by two AA cells.

DC Motor 13GA-030 3V 150rpm Specifications

• Model: 13GA-030
• Type: DC gear motor (small DC motor with a reduction gearbox)
• Rated voltage: 3 V DC
• Output speed: 150 rpm at 3 V (2.5 turns per second)
• Suggested supply: 2 × AA cells (3 V) or a 3 V supply through a motor driver
• Direction: reversible by swapping the supply polarity

DC Motor 13GA-030 3V 150rpm Applications

• Slow, controllable robot cars
• Turntables and rotating displays
• Battery-powered toys and models
• Simple conveyor and lift models
• Beginner electronics and STEM lessons

What's in the Box

• 1 × DC Motor 13GA-030 3V 150rpm gear motor

Tip: A 40 mm wheel at 150 rpm travels about 0.3 m/s before load, a comfortable speed for beginner robots. Pick a motor driver rated for low voltages, as drivers such as the L298N drop too much voltage for a 3 V motor.
