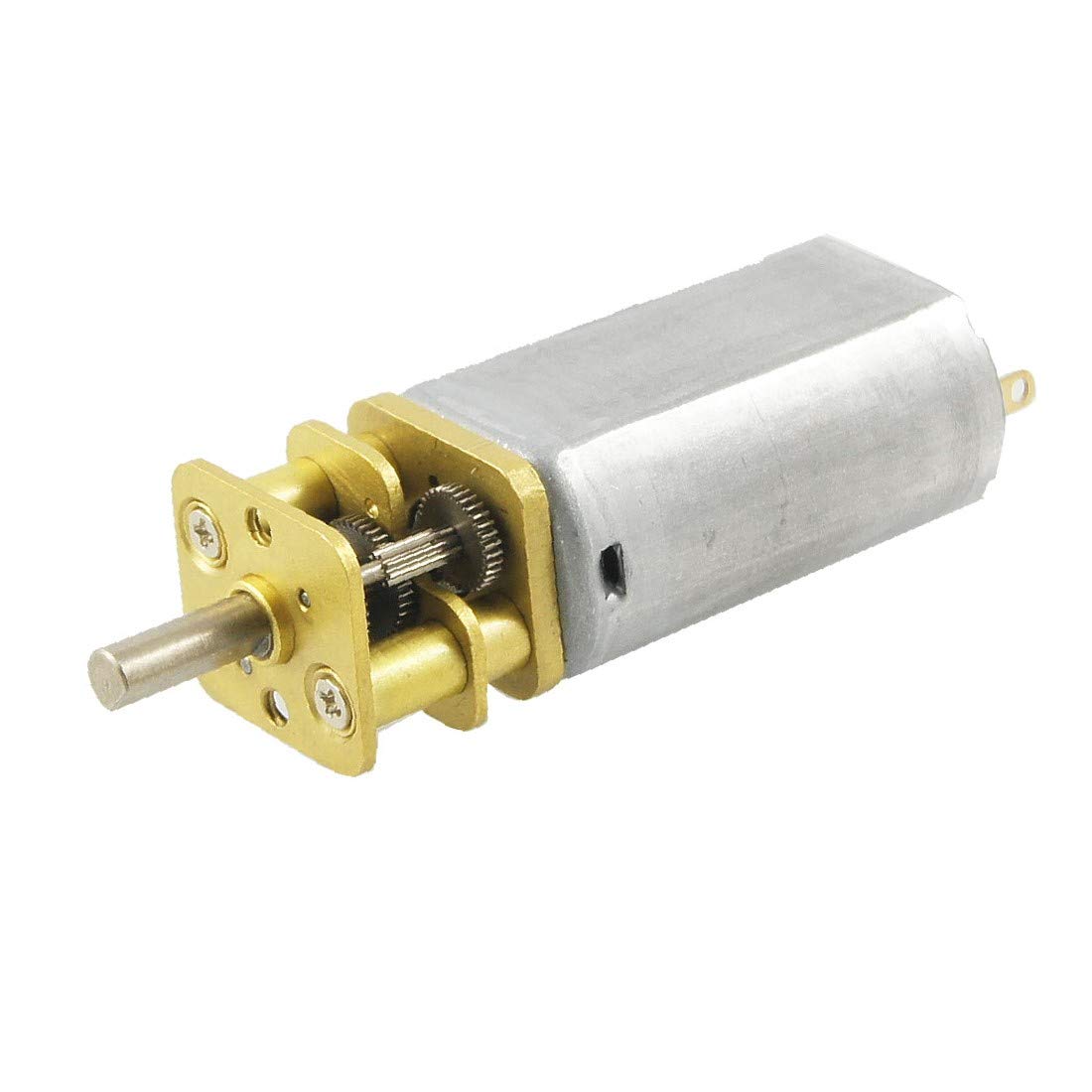

DC Motor 13GA-030 3V 15rpm

The DC Motor 13GA-030 3V 15rpm is a slow-speed DC gear motor rated for 3 V, with an output of 15 rpm, which is one full turn every 4 seconds. Its higher gear reduction gives more torque at the shaft than the faster versions of this motor, making it useful wherever something has to turn slowly and steadily rather than quickly. It is a handy part for displays, models and low-voltage robotics projects.

DC Motor 13GA-030 3V 15rpm Specifications

• Type: DC motor with reduction gearbox
• Model: 13GA-030
• Rated voltage: 3 V DC
• Output speed: 15 rpm at 3 V (one turn every 4 seconds)
• Direction: reversible by swapping the supply polarity
• Speed control: supply voltage or PWM through a motor driver

DC Motor 13GA-030 3V 15rpm Applications

• Rotating product and photo turntables
• Slow-moving parts in models and animated displays
• Camera panning for simple time-lapse rigs
• Rotating drums in automatic dispensers and feeders
• School and university robotics projects

What's in the Box

• 1 × DC Motor 13GA-030, 3 V 15 rpm

Tip: Do not connect the motor straight to an Arduino or ESP32 pin; use a driver such as the L9110S or DRV8833, which work at 3 V. For an even slower speed, lower the PWM duty cycle, but keep it high enough for the motor to start reliably.
