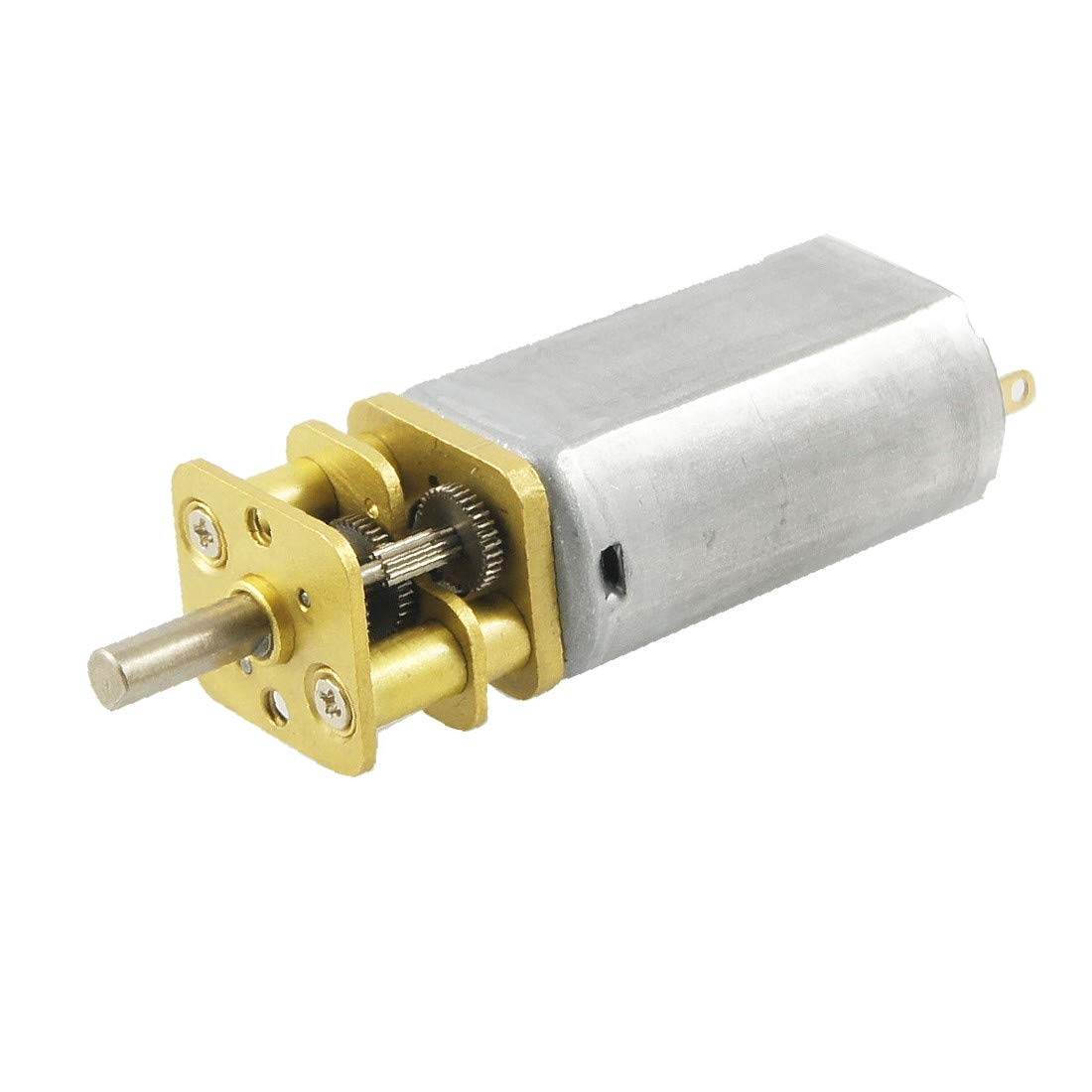

DC Motor 13GA-030 3V 200rpm

The DC Motor 13GA-030 3V 200rpm is a compact DC gear motor rated for 3 V that turns its output shaft at 200 rpm, about 3.3 turns per second. Because it runs from 3 V, a simple two-AA battery holder can power it, making it a neat choice for small robots, moving toys and classroom projects that need a gentle, geared drive.

DC Motor 13GA-030 3V 200rpm Specifications

• Model: 13GA-030
• Type: DC gear motor (small DC motor with a reduction gearbox)
• Rated voltage: 3 V DC
• Output speed: 200 rpm at 3 V (about 3.3 turns per second)
• Suggested supply: 2 × AA cells (3 V) or a 3 V supply through a motor driver
• Direction: reversible by swapping the supply polarity

DC Motor 13GA-030 3V 200rpm Applications

• Small robot cars and line followers
• Moving toys and animated models
• Rotating platforms and spinners
• Science and STEM classroom projects
• Low-voltage battery-powered builds

What's in the Box

• 1 × DC Motor 13GA-030 3V 200rpm gear motor

Tip: Two fresh AA cells give about 3 V, which matches this motor. If a microcontroller controls it, use a low-voltage H-bridge such as the DRV8833, and connect the battery ground to the microcontroller ground.
