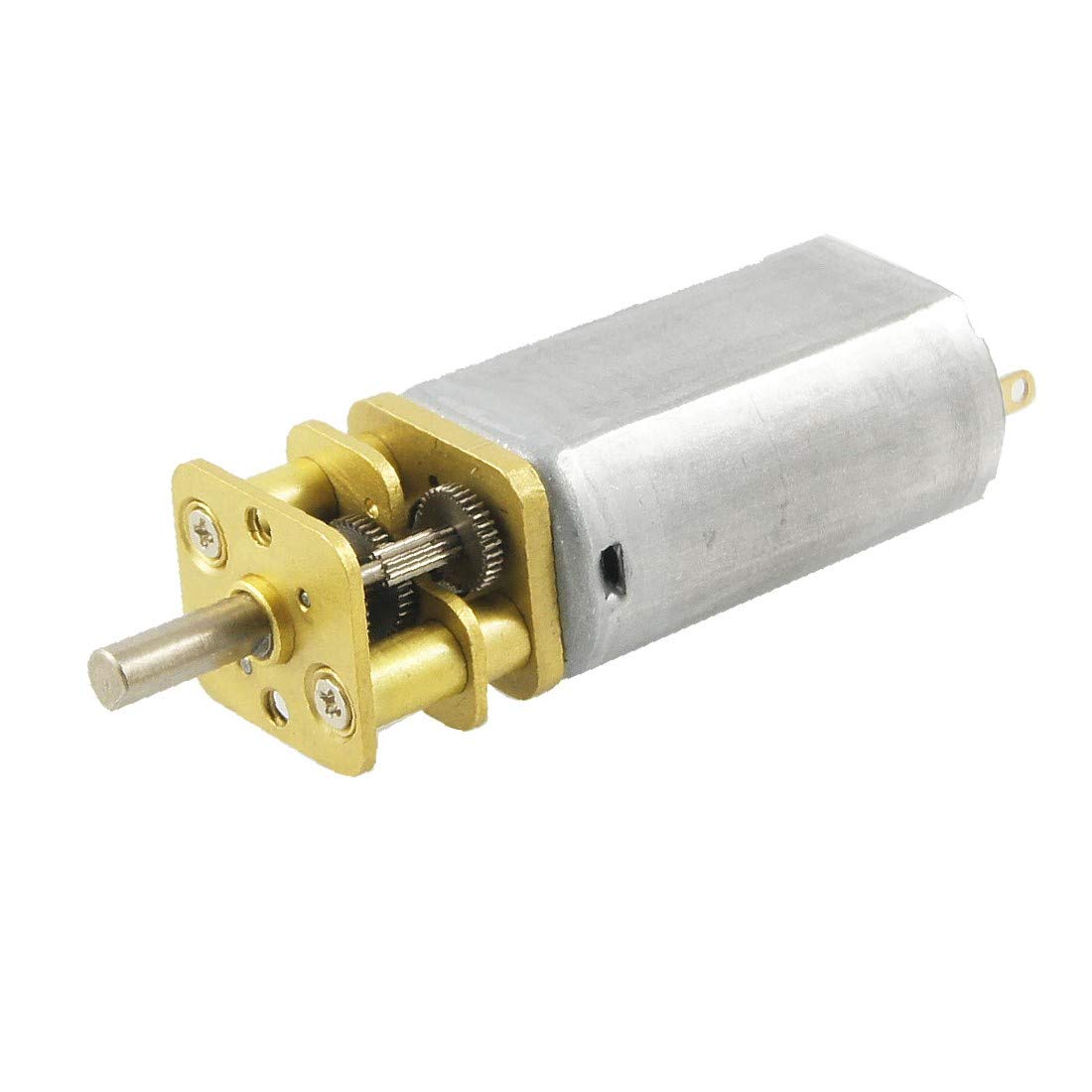

DC Motor 13GA-030 3V 250rpm

The DC Motor 13GA-030 3V 250rpm is a small DC gear motor rated for 3 V, with an output speed of 250 rpm, just over 4 turns per second. Its low operating voltage makes it easy to power from two AA cells, and its moderate speed suits battery-powered robot cars, toys and moving models that need a compact geared drive.

DC Motor 13GA-030 3V 250rpm Specifications

• Model: 13GA-030
• Type: DC gear motor (small DC motor with a reduction gearbox)
• Rated voltage: 3 V DC
• Output speed: 250 rpm at 3 V (about 4.2 turns per second)
• Suggested supply: 2 × AA cells (3 V) or a 3 V supply through a motor driver
• Direction: reversible by swapping the supply polarity

DC Motor 13GA-030 3V 250rpm Applications

• Small battery-powered robot cars
• Moving toys and educational models
• Turntables and rotating displays
• Low-voltage STEM kits and classroom projects
• micro:bit and ESP32 robot builds with a low-voltage driver

What's in the Box

• 1 × DC Motor 13GA-030 3V 250rpm gear motor

Tip: A 40 mm wheel at 250 rpm moves about 0.5 m/s before load. Use a driver that works at 3 V, such as the DRV8833 or TB6612FNG, and power the motor separately from the microcontroller.
