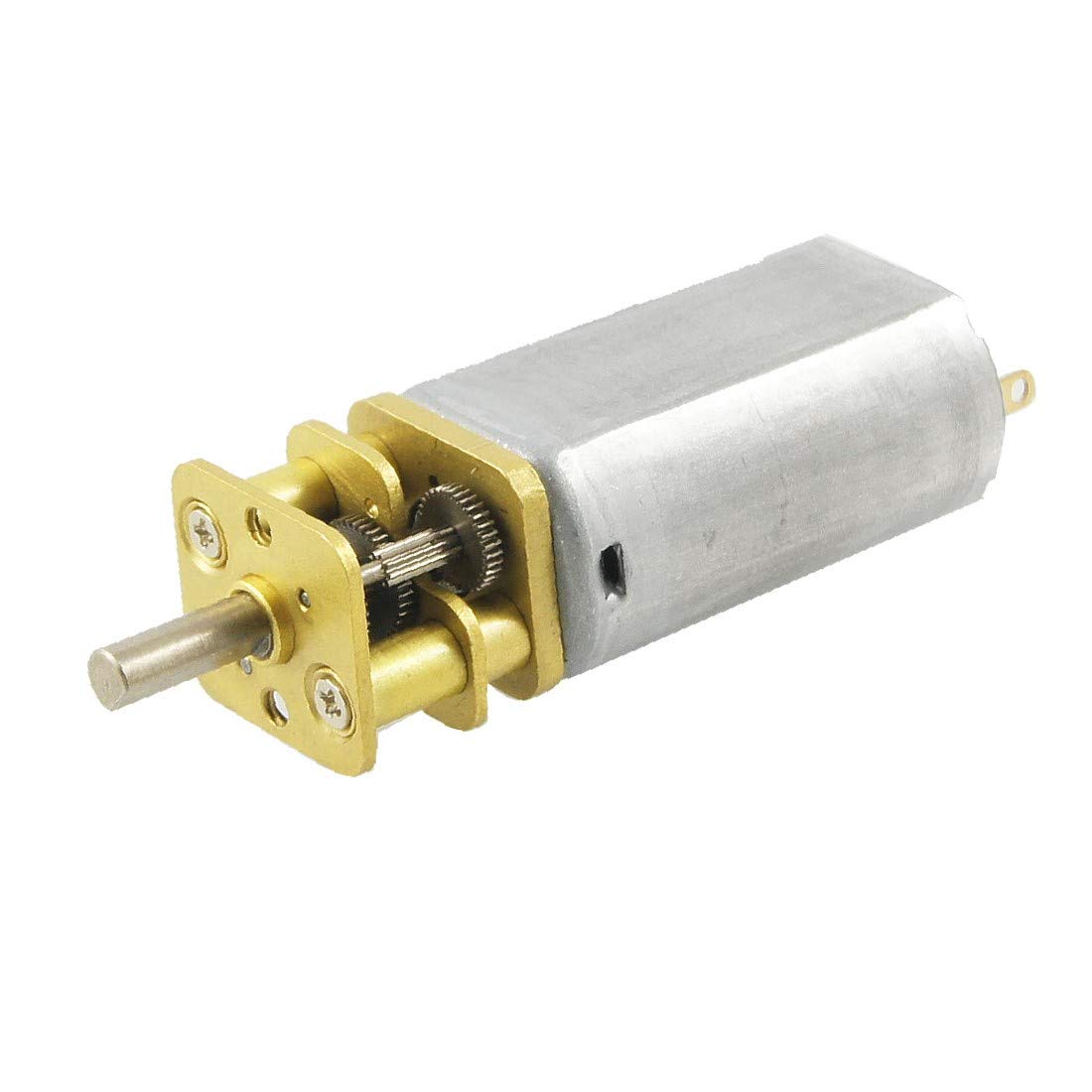

DC Motor 13GA-030 3V 3rpm

The DC Motor 13GA-030 3V 3rpm is an ultra-slow DC gear motor rated for 3 V, turning its output shaft at just 3 rpm, which is one full turn every 20 seconds. The very high gear reduction gives gentle, continuous motion and more torque at the shaft than the faster versions, ideal for displays and mechanisms that should move slowly and smoothly. It runs from two AA batteries or a 3 V supply.

DC Motor 13GA-030 3V 3rpm Specifications

• Type: DC motor with reduction gearbox
• Model: 13GA-030
• Rated voltage: 3 V DC
• Output speed: 3 rpm at 3 V (one turn every 20 seconds)
• Direction: reversible by swapping the supply polarity
• Speed control: supply voltage or PWM through a motor driver

DC Motor 13GA-030 3V 3rpm Applications

• Rotating display stands for jewellery, models and products
• Slow photo turntables and time-lapse panning
• Moving parts in dioramas and exhibition models
• Slow mixing or tumbling of light materials
• Science and engineering demonstrations of gear reduction

What's in the Box

• 1 × DC Motor 13GA-030, 3 V 3 rpm

Tip: At 3 rpm the shaft moves 18 degrees per second. If no control is needed, run it from a 2 × AA battery holder with a switch; to control it from an Arduino or ESP32, use a low-voltage driver such as the L9110S or DRV8833.
