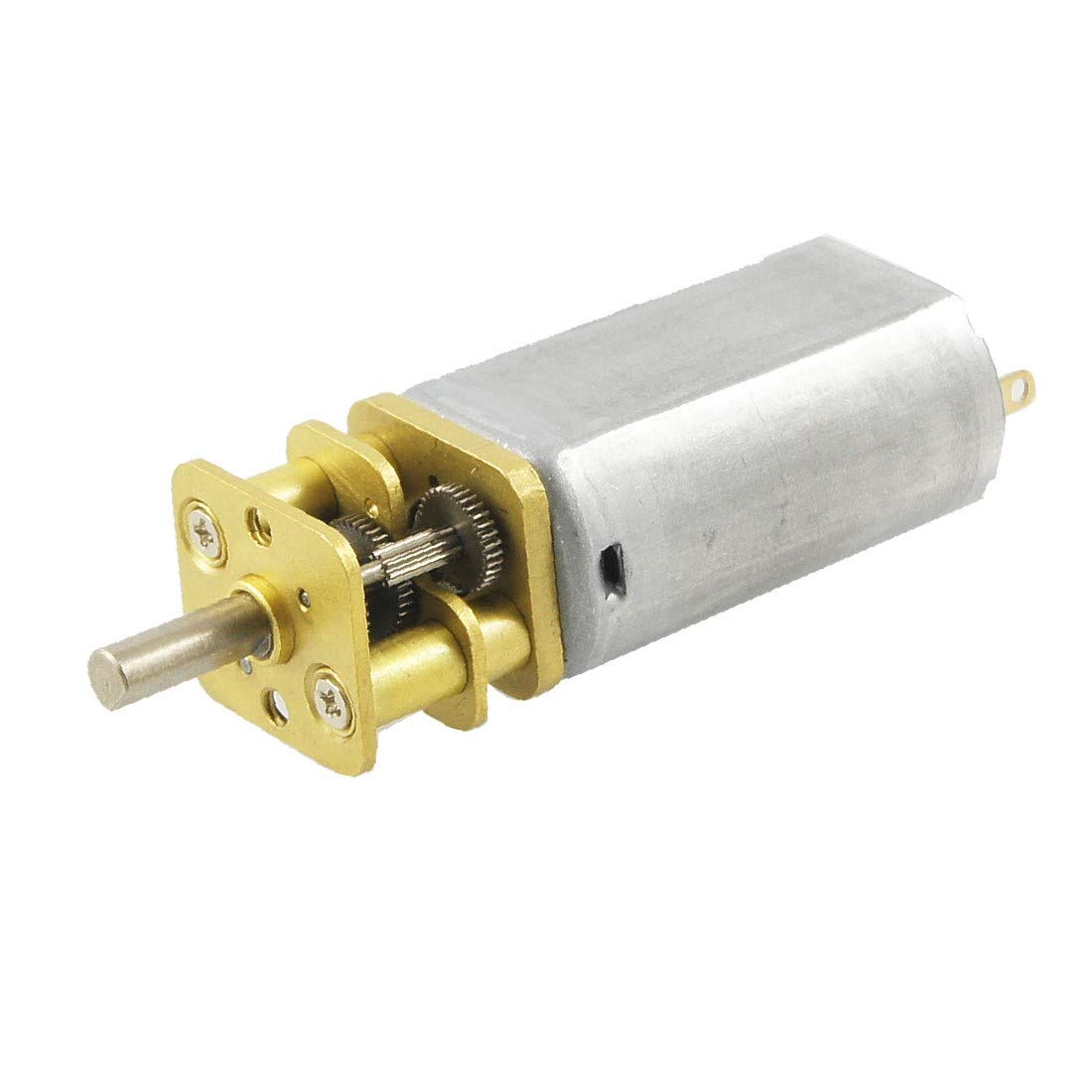

DC Motor 13GA-030 3V 500rpm

The DC Motor 13GA-030 3V 500rpm is a compact DC gear motor rated for 3 V, with an output speed of 500 rpm, a little over 8 turns per second. The low rated voltage means it can run from just two AA cells, which keeps battery packs small and light in toys, small fans, spinning models and lightweight robots.

DC Motor 13GA-030 3V 500rpm Specifications

• Model: 13GA-030
• Type: DC gear motor (small DC motor with a reduction gearbox)
• Rated voltage: 3 V DC
• Output speed: 500 rpm at 3 V (about 8.3 turns per second)
• Suggested supply: 2 × AA cells (3 V) or a 3 V supply through a motor driver
• Direction: reversible by swapping the supply polarity

DC Motor 13GA-030 3V 500rpm Applications

• Small fans and spinning toys
• Lightweight, fast robot cars
• Moving parts in battery-powered models
• Simple science-fair motor projects
• Low-voltage ESP32 and micro:bit projects with a suitable driver

What's in the Box

• 1 × DC Motor 13GA-030 3V 500rpm gear motor

Tip: Choose a low-voltage driver such as the DRV8833 or TB6612FNG; the L298N loses about 2 V internally and leaves too little for a 3 V motor. Do not run the motor from 5 V for long, as it is rated for 3 V.
