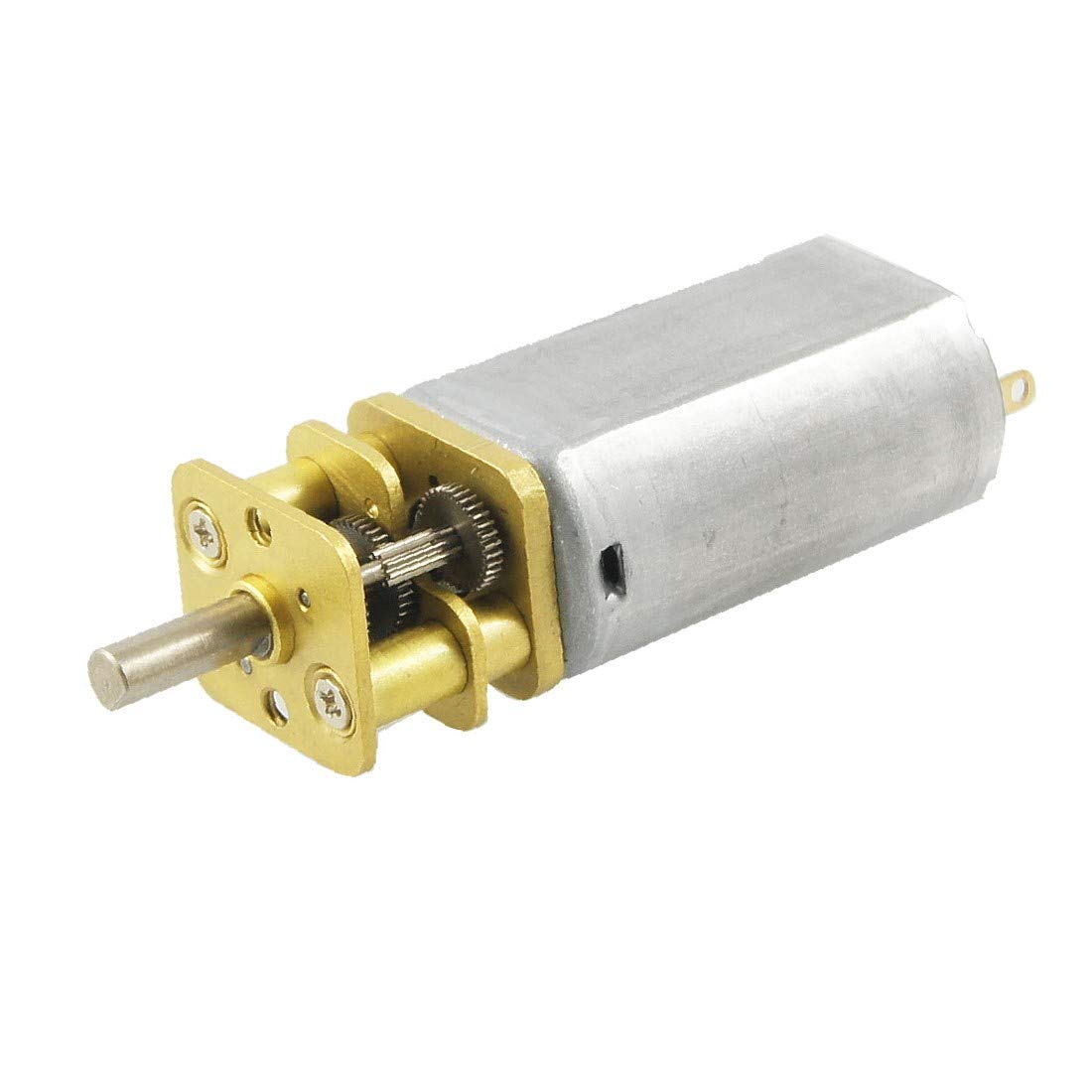

DC Motor 13GA-030 3V 60rpm

The DC Motor 13GA-030 3V 60rpm is a small DC gear motor rated for 3 V, with an output speed of 60 rpm, exactly one turn per second. It runs from a low-voltage supply such as two AA cells and gives slow, controlled rotation for feeders, displays, small arms and other battery-powered mechanisms.

DC Motor 13GA-030 3V 60rpm Specifications

• Model: 13GA-030
• Type: DC gear motor (small DC motor with a reduction gearbox)
• Rated voltage: 3 V DC
• Output speed: 60 rpm at 3 V (one turn per second)
• Suggested supply: 2 × AA cells (3 V) or a 3 V supply through a motor driver
• Direction: reversible by swapping the supply polarity

DC Motor 13GA-030 3V 60rpm Applications

• Timed feeders and dispensers
• Rotating displays and small turntables
• Robot arm joints and grippers
• Slow robots and crawlers
• Battery-powered models and toys

What's in the Box

• 1 × DC Motor 13GA-030 3V 60rpm gear motor

Tip: One turn per second makes timing simple: run the motor for a set number of seconds to get an approximate number of turns, and add a limit switch where accuracy matters. Use a driver that works at 3 V, such as the DRV8833.
