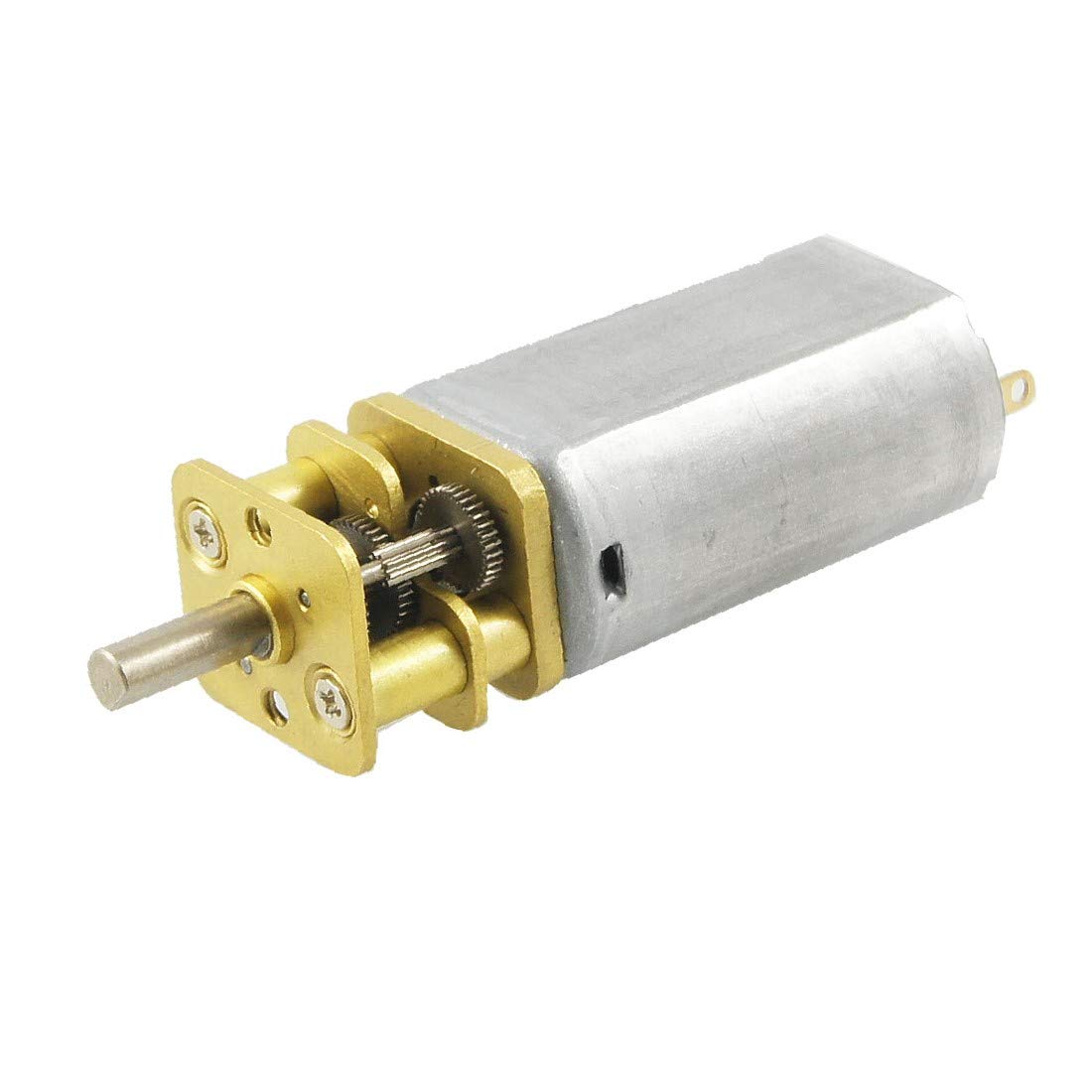

DC Motor 13GA-030 6V 1000rpm

The DC Motor 13GA-030 6V 1000rpm is a compact DC gear motor rated for 6 V, with a fast output speed of 1000 rpm, or about 16 turns per second. It is a good choice when you need a small geared shaft that spins quickly rather than slowly, such as for fans, spinners, mixers and fast-moving parts in models, robots and STEM projects.

DC Motor 13GA-030 6V 1000rpm Specifications

• Model: 13GA-030
• Type: DC gear motor (small DC motor with a reduction gearbox)
• Rated voltage: 6 V DC
• Output speed: 1000 rpm at 6 V (about 16.7 turns per second)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 13GA-030 6V 1000rpm Applications

• Small fans and air blowers
• Spinners, stirrers and mini mixers
• Fast robot mechanisms such as ball launchers
• Wheels for light racing robots
• Arduino and ESP32 PWM speed control experiments

What's in the Box

• 1 × DC Motor 13GA-030 6V 1000rpm gear motor

Tip: At 1000 rpm the torque is low, so this version is not suited to heavy wheels or lifting; choose a slower 13GA-030 motor for those jobs. Use PWM through a motor driver such as the L9110S or TB6612FNG to set the speed you need.
