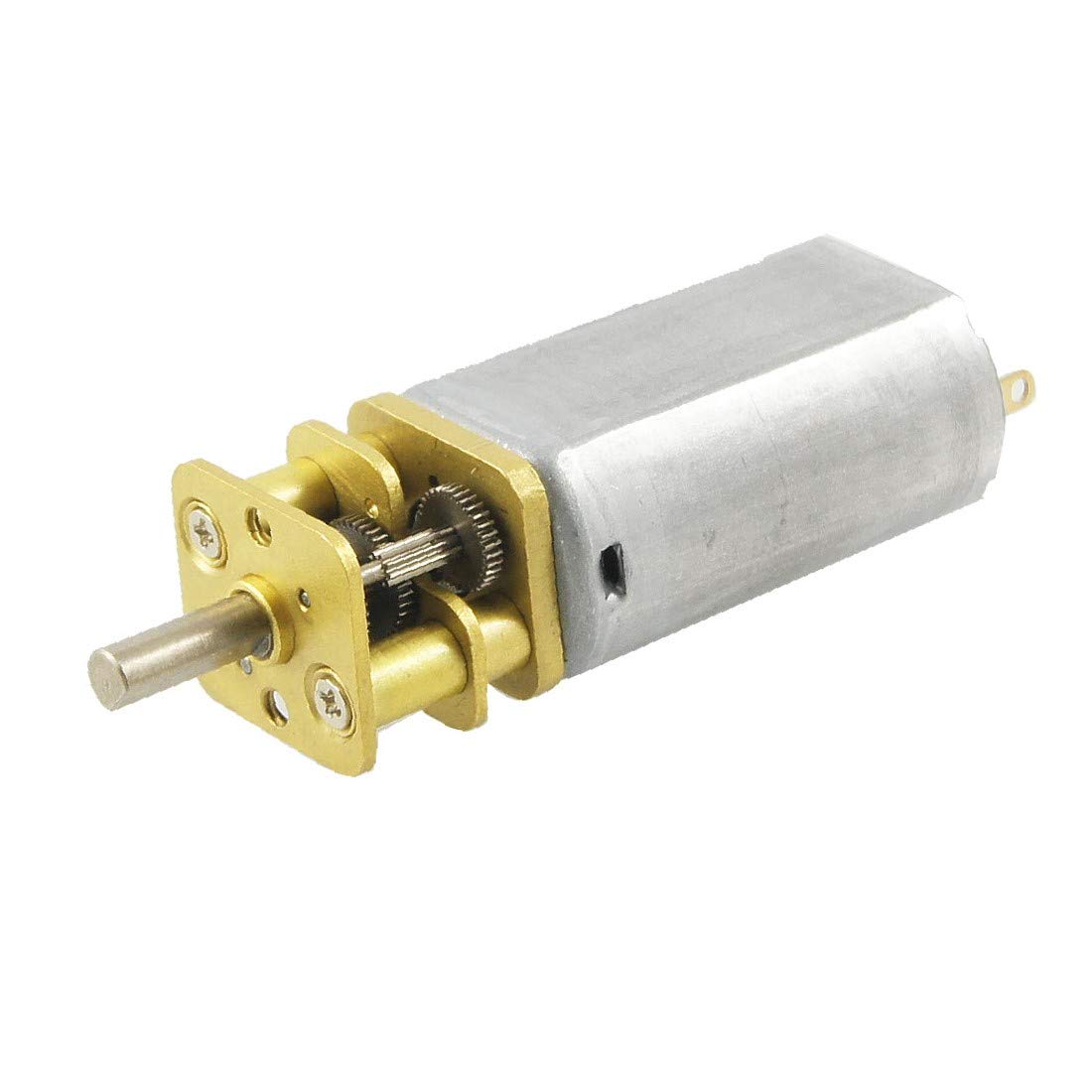

DC Motor 13GA-030 6V 100rpm

The DC Motor 13GA-030 6V 100rpm is a small DC gear motor rated for 6 V, with an output speed of 100 rpm. The reduction gearbox gives slow, steady rotation and more torque than the faster versions of the same motor, which makes it a popular choice for small robot wheels, arms and turning mechanisms in school and hobby projects.

DC Motor 13GA-030 6V 100rpm Specifications

• Model: 13GA-030
• Type: DC gear motor (small DC motor with a reduction gearbox)
• Rated voltage: 6 V DC
• Output speed: 100 rpm at 6 V (one turn every 0.6 seconds)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 13GA-030 6V 100rpm Applications

• Drive wheels for small robots and line followers
• Robotic arms, grippers and rotating bases
• Turntables and slow conveyor models
• Opening small doors, lids and flaps
• STEM classes and robotics clubs

What's in the Box

• 1 × DC Motor 13GA-030 6V 100rpm gear motor

Tip: With a 65 mm wheel, 100 rpm gives about 0.34 m/s before load. Never power the motor from an Arduino pin; use a motor driver and a separate supply. Running it well above 6 V raises the speed but shortens the motor's life.
