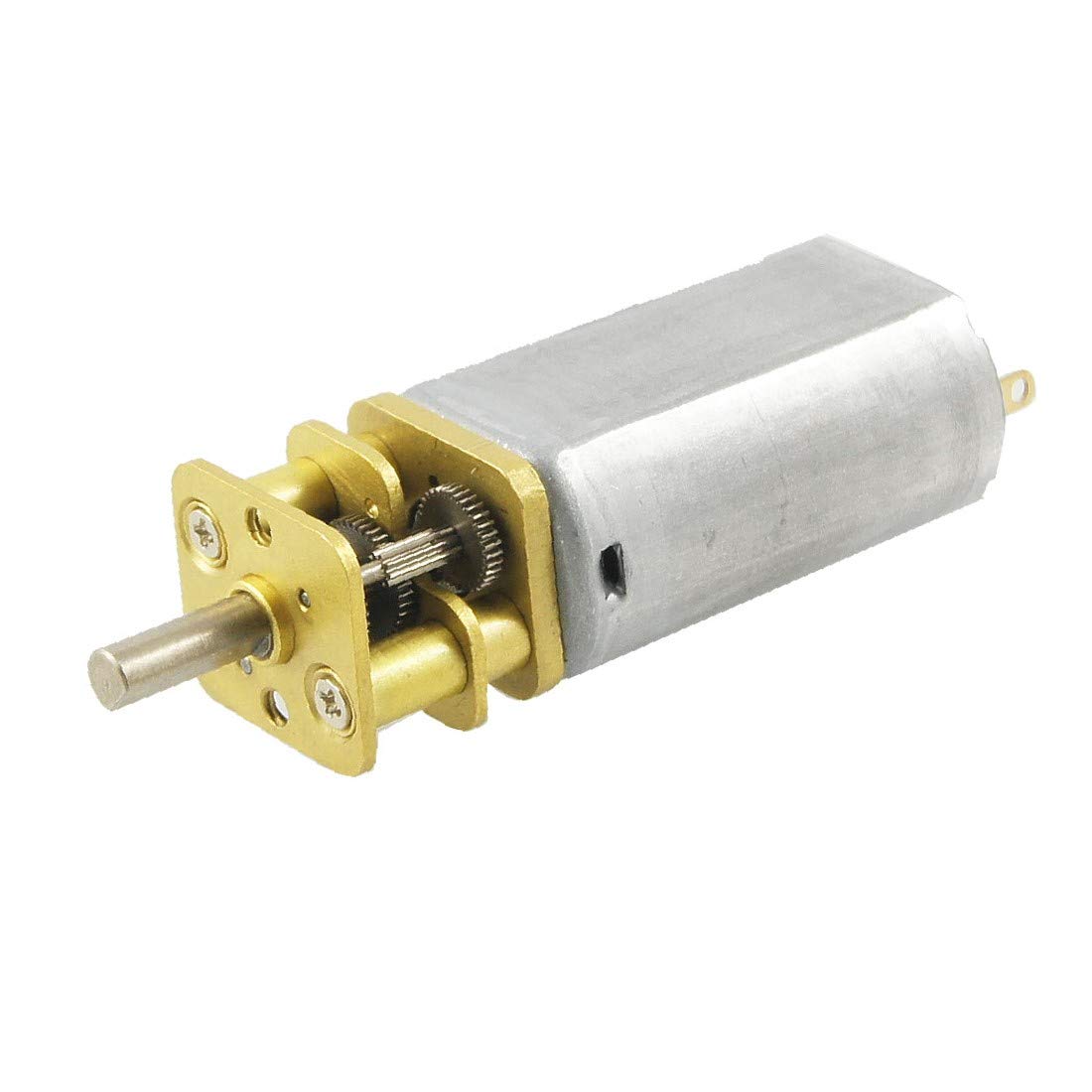

DC Motor 13GA-030 6V 10rpm

The DC Motor 13GA-030 6V 10rpm is a compact DC gear motor rated for 6 V, with a very slow output speed of 10 rpm, one full turn every 6 seconds. The high reduction ratio gives more torque than the faster versions of this motor, so it suits small winches, motorised blinds and slow rotating projects where gentle, controlled motion is needed.

DC Motor 13GA-030 6V 10rpm Specifications

• Model: 13GA-030
• Type: DC gear motor (small DC motor with a reduction gearbox)
• Rated voltage: 6 V DC
• Output speed: 10 rpm at 6 V (60° per second, one turn every 6 seconds)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 13GA-030 6V 10rpm Applications

• Small winches and cord winders
• Motorised blinds, curtains and covers
• Slow time-lapse camera turntables
• Animated models and kinetic art
• STEM projects that study gear reduction

What's in the Box

• 1 × DC Motor 13GA-030 6V 10rpm gear motor

Tip: A 20 mm spool on a 10 rpm shaft winds about 10 mm of cord per second. Do not turn the output shaft by hand, since back-driving a high-ratio gearbox can damage the gears, and use limit switches so the motor never stalls for long.
