DC Motor 13GA-030 6V 120rpm

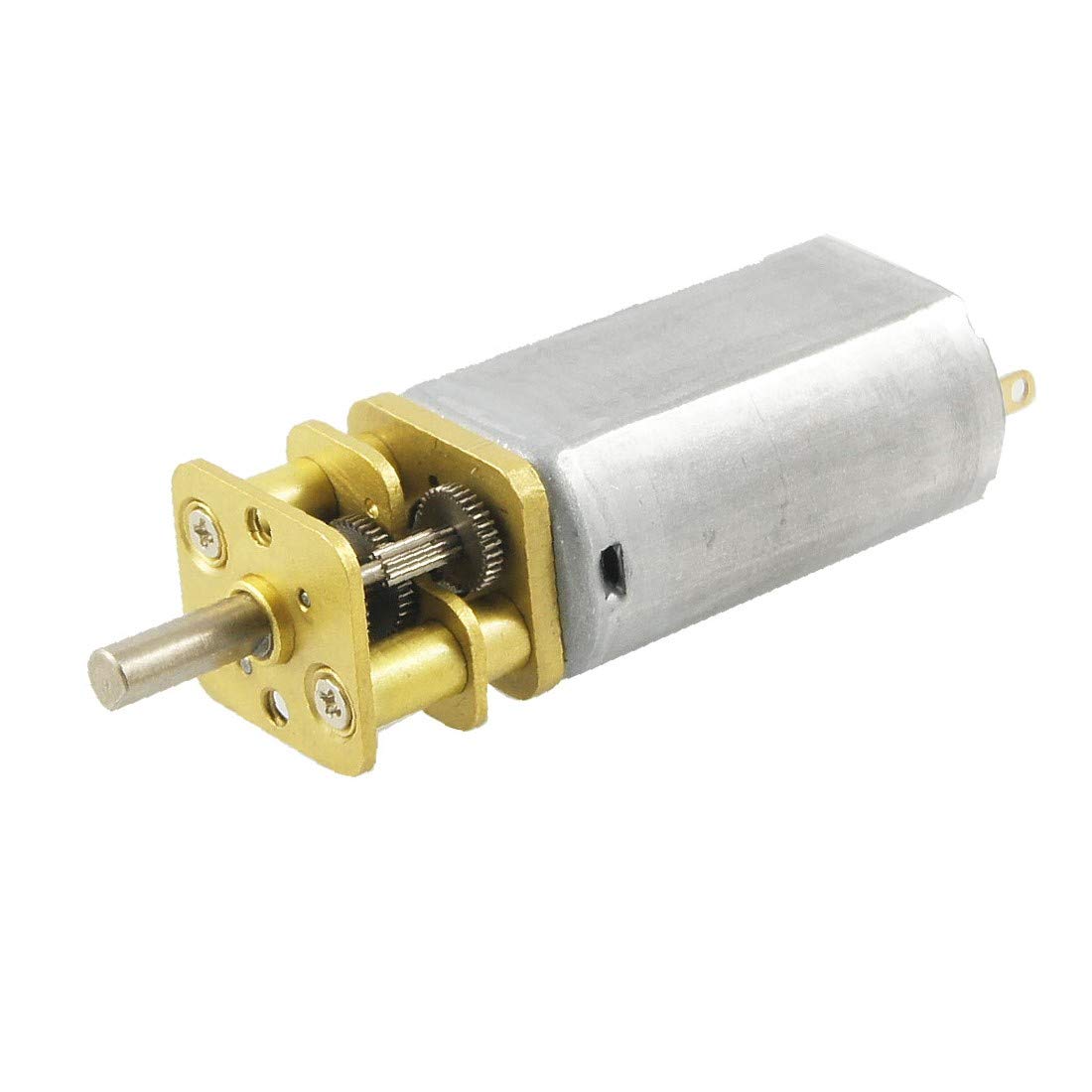

The DC Motor 13GA-030 6V 120rpm is a small DC gear motor rated for 6 V, with an output speed of 120 rpm, or 2 turns per second. The gearbox lowers the speed and raises the torque, so the shaft moves at a calm, controllable pace that suits robot wheels, small arms and rotating parts in models and classroom projects.

DC Motor 13GA-030 6V 120rpm Specifications

• Model: 13GA-030
• Type: DC gear motor (small DC motor with a reduction gearbox)
• Rated voltage: 6 V DC
• Output speed: 120 rpm at 6 V (2 turns per second)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 13GA-030 6V 120rpm Applications

• Slow, precise robot cars and line followers
• Robotic arms, grippers and pan mechanisms
• Rotating platforms and display stands
• Small conveyor belt models
• Arduino and ESP32 motor control projects

What's in the Box

• 1 × DC Motor 13GA-030 6V 120rpm gear motor

Tip: A 40 mm wheel at 120 rpm covers about 0.25 m/s before load, which gives sensors plenty of time to react. Use a motor driver such as the L9110S or TB6612FNG, and avoid holding the motor stalled, as this heats the windings.
