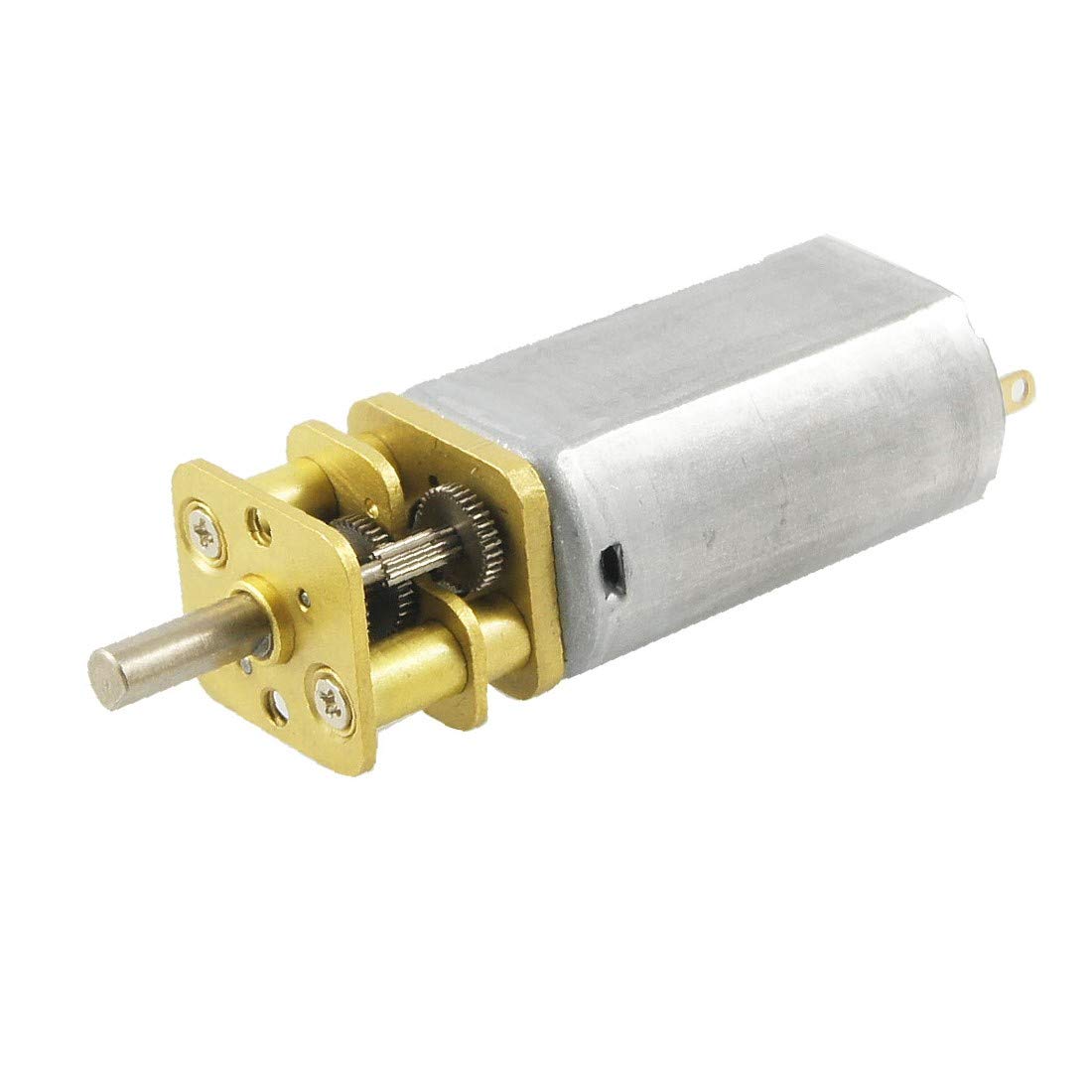

DC Motor 13GA-030 6V 20rpm

The DC Motor 13GA-030 6V 20rpm is a compact DC gear motor rated for 6 V that turns its output shaft at 20 rpm, one full turn every 3 seconds. The slow, geared output is well suited to mechanisms that must move gently and steadily, such as rotating platforms, automatic feeders, small winches and animated displays.

DC Motor 13GA-030 6V 20rpm Specifications

• Model: 13GA-030
• Type: DC gear motor (small DC motor with a reduction gearbox)
• Rated voltage: 6 V DC
• Output speed: 20 rpm at 6 V (120° per second, one turn every 3 seconds)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 13GA-030 6V 20rpm Applications

• Rotating platforms and product display stands
• Automatic feeders and timed dispensers
• Small winches and cord winders
• Animated displays and kinetic sculptures
• Robotics and STEM projects that need slow motion

What's in the Box

• 1 × DC Motor 13GA-030 6V 20rpm gear motor

Tip: At 20 rpm, a 20 mm spool winds about 21 mm of cord per second, so plan winch travel with that in mind. Run the motor through a motor driver from a 6 V supply such as four AA cells, and do not force the shaft by hand.
