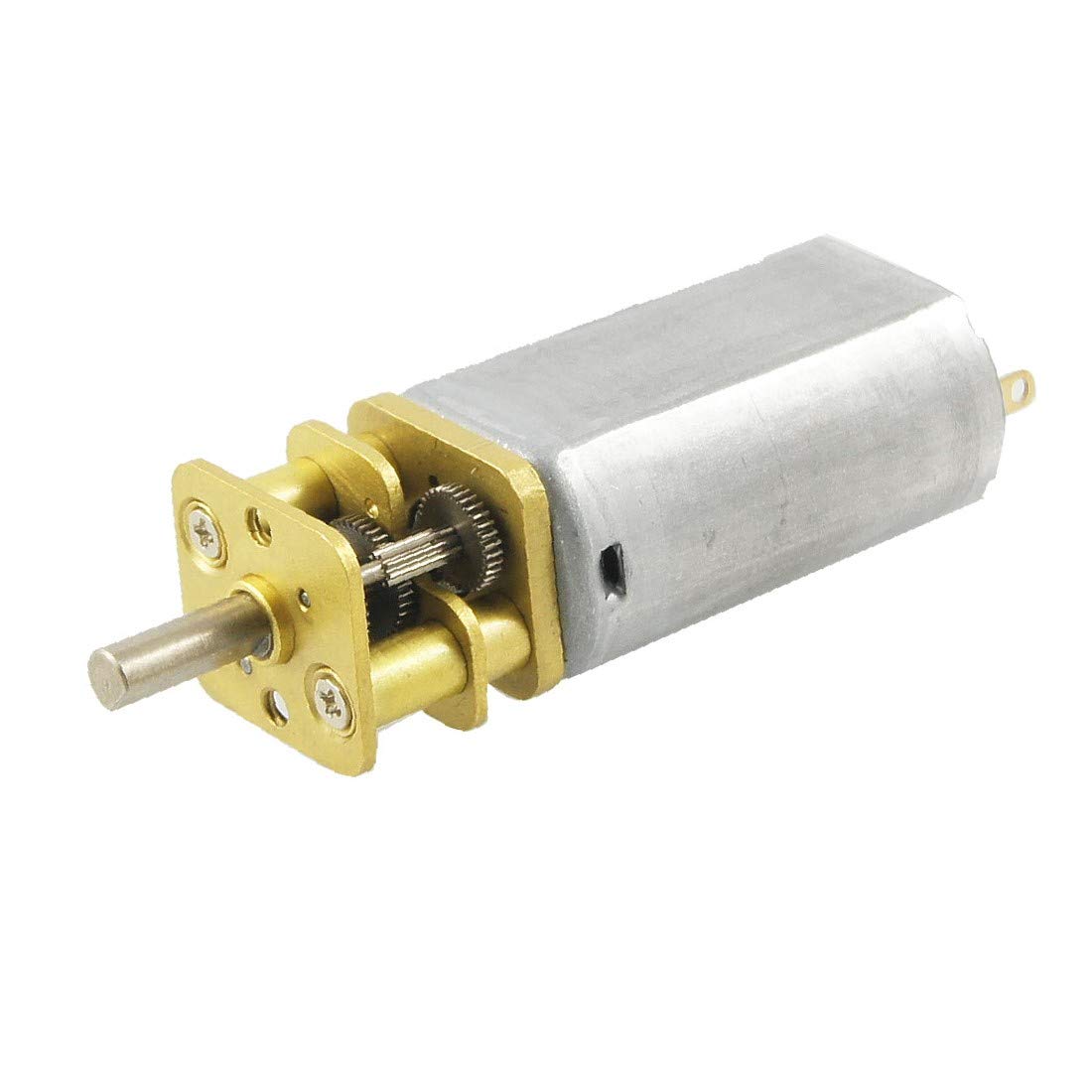

DC Motor 13GA-030 6V 30rpm

The DC Motor 13GA-030 6V 30rpm is a small DC gear motor rated for 6 V, with an output speed of 30 rpm, or one turn every 2 seconds. The high gear reduction gives slow, smooth motion and more torque than the faster versions of this motor, making it well suited to feeders, blinds, turntables and small lifting mechanisms.

DC Motor 13GA-030 6V 30rpm Specifications

• Model: 13GA-030
• Type: DC gear motor (small DC motor with a reduction gearbox)
• Rated voltage: 6 V DC
• Output speed: 30 rpm at 6 V (180° per second, one turn every 2 seconds)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 13GA-030 6V 30rpm Applications

• Automatic pet and fish feeders
• Motorised blinds, flaps and small doors
• Slow turntables for photos and displays
• Light lifting and winding mechanisms
• Kinetic art and animated models

What's in the Box

• 1 × DC Motor 13GA-030 6V 30rpm gear motor

Tip: A high-ratio gearbox can push hard when stalled, so use limit switches to cut the power at the end of travel. Control the motor with an H-bridge driver such as the L9110S or TB6612FNG.
