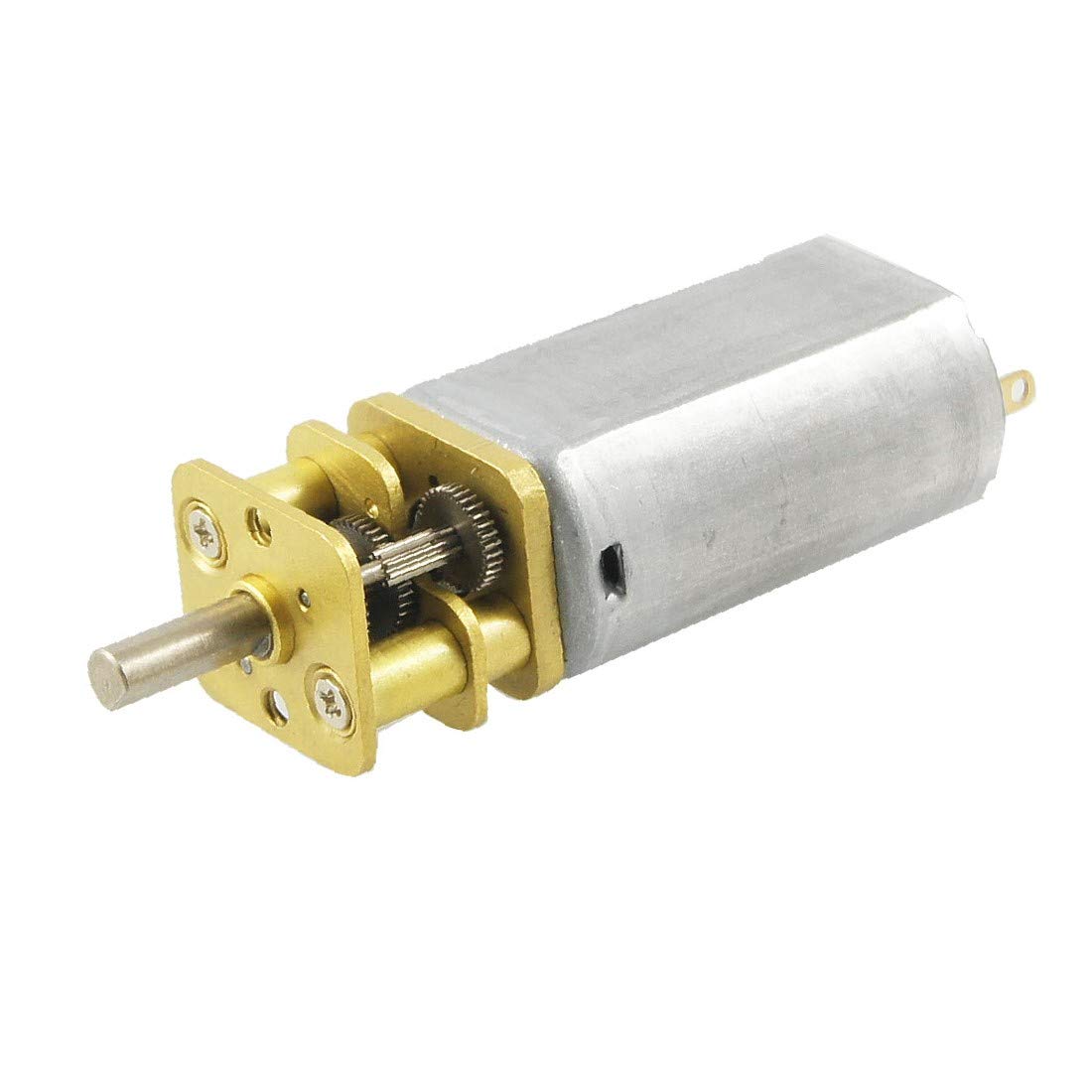

DC Motor 13GA-030 6V 400rpm

The DC Motor 13GA-030 6V 400rpm is a compact DC gear motor that runs from 6 V and turns its output shaft at 400 rpm, close to 7 turns per second. This speed is a practical middle ground for small wheeled robots that need to move quickly while carrying a light load, and for fans, spinners and other moving parts in models.

DC Motor 13GA-030 6V 400rpm Specifications

• Model: 13GA-030
• Type: DC gear motor (small DC motor with a reduction gearbox)
• Rated voltage: 6 V DC
• Output speed: 400 rpm at 6 V (about 6.7 turns per second)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 13GA-030 6V 400rpm Applications

• Wheels for small two-wheel and four-wheel robot cars
• Obstacle-avoiding and Bluetooth-controlled robots
• Small fans and spinning mechanisms
• Moving parts in models and science-fair projects
• STEM and robotics classes

What's in the Box

• 1 × DC Motor 13GA-030 6V 400rpm gear motor

Tip: With a 40 mm wheel, 400 rpm gives roughly 0.8 m/s before load. Use a driver such as the L9110S or TB6612FNG with a 6 V battery pack, and add a 0.1 µF capacitor across the motor terminals if the motor causes noise in your sensors.
