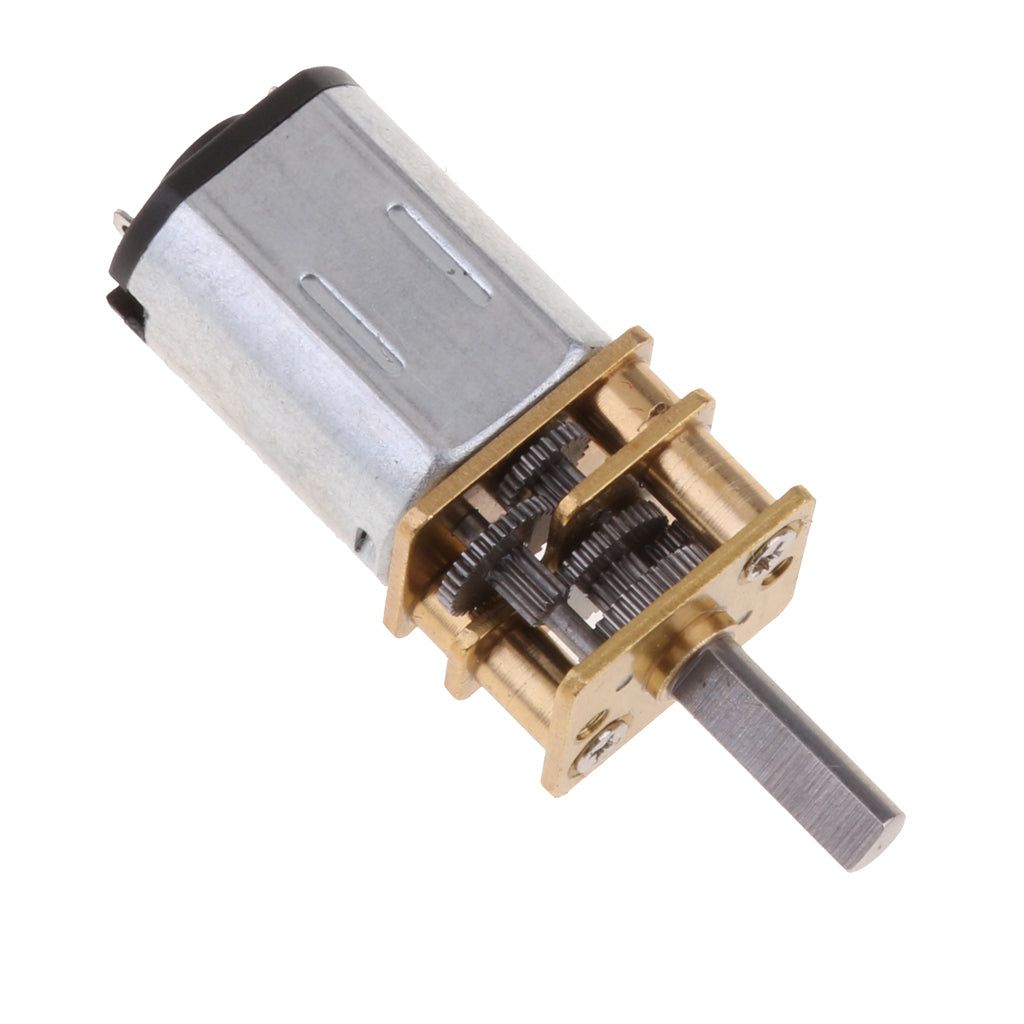

DC Motor 13GA 12V 120rpm

The DC Motor 13GA 12V 120rpm is a 12 V DC gear motor that turns its output shaft at 120 rpm, or two turns per second. The reduction gearbox gives more torque than the faster versions while keeping enough speed for driving wheels, belts and rollers. It is a versatile choice for 12 V robots and automation projects controlled by Arduino, ESP32 or Raspberry Pi through a motor driver.

DC Motor 13GA 12V 120rpm Specifications

• Type: DC motor with reduction gearbox
• Model: 13GA
• Rated voltage: 12 V DC
• Output speed: 120 rpm at 12 V (two turns per second)
• Direction: reversible by swapping the supply polarity
• Speed control: supply voltage or PWM through a motor driver

DC Motor 13GA 12V 120rpm Applications

• Robot car drive wheels (a 65 mm wheel at 120 rpm moves about 0.41 m/s)
• Belt and roller conveyors
• Pan and rotation mechanisms
• Automatic doors, gates and sliders in models
• School and university mechatronics projects

What's in the Box

• 1 × DC Motor 13GA, 12 V 120 rpm

Tip: Raspberry Pi and ESP32 pins are 3.3 V and supply very little current, so always place a driver such as the L298N between the board and the motor, power the motor from its own 12 V supply, and connect the grounds together.
