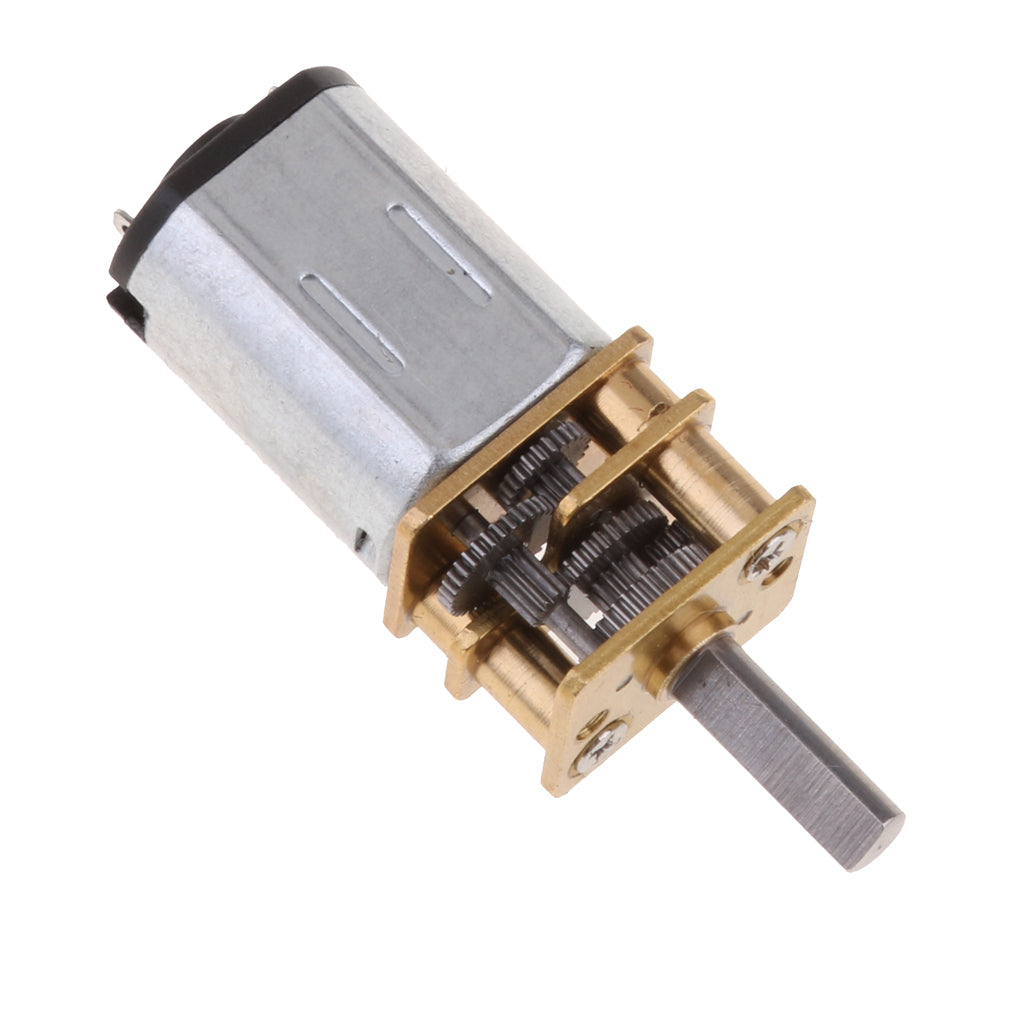

DC Motor 13GA 12V 300rpm

The DC Motor 13GA 12V 300rpm is a compact brushed DC gear motor of the 13GA size, rated for 12 V with an output speed of about 300 rpm. Its small reduction gearbox gives a useful balance of speed and torque in a small body, so it fits light robots, small mechanisms and models where space is limited. Like other gear motors it can run in both directions and its speed can be set with PWM.

DC Motor 13GA 12V 300rpm Specifications

• Size: 13GA gear motor
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: about 300 rpm at 12 V
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 13GA 12V 300rpm Applications

• Light robots and small wheeled platforms
• Small actuators, locks and flaps
• Rotating parts in models and displays
• School robotics and STEM projects

What's in the Box

• 1 × DC Motor 13GA 12V 300rpm gear motor

Tip: Run the motor through a small motor driver such as the TB6612FNG or L298N so you can change direction and speed from an Arduino or ESP32. Solder a 100 nF ceramic capacitor across the motor terminals to cut electrical noise.
