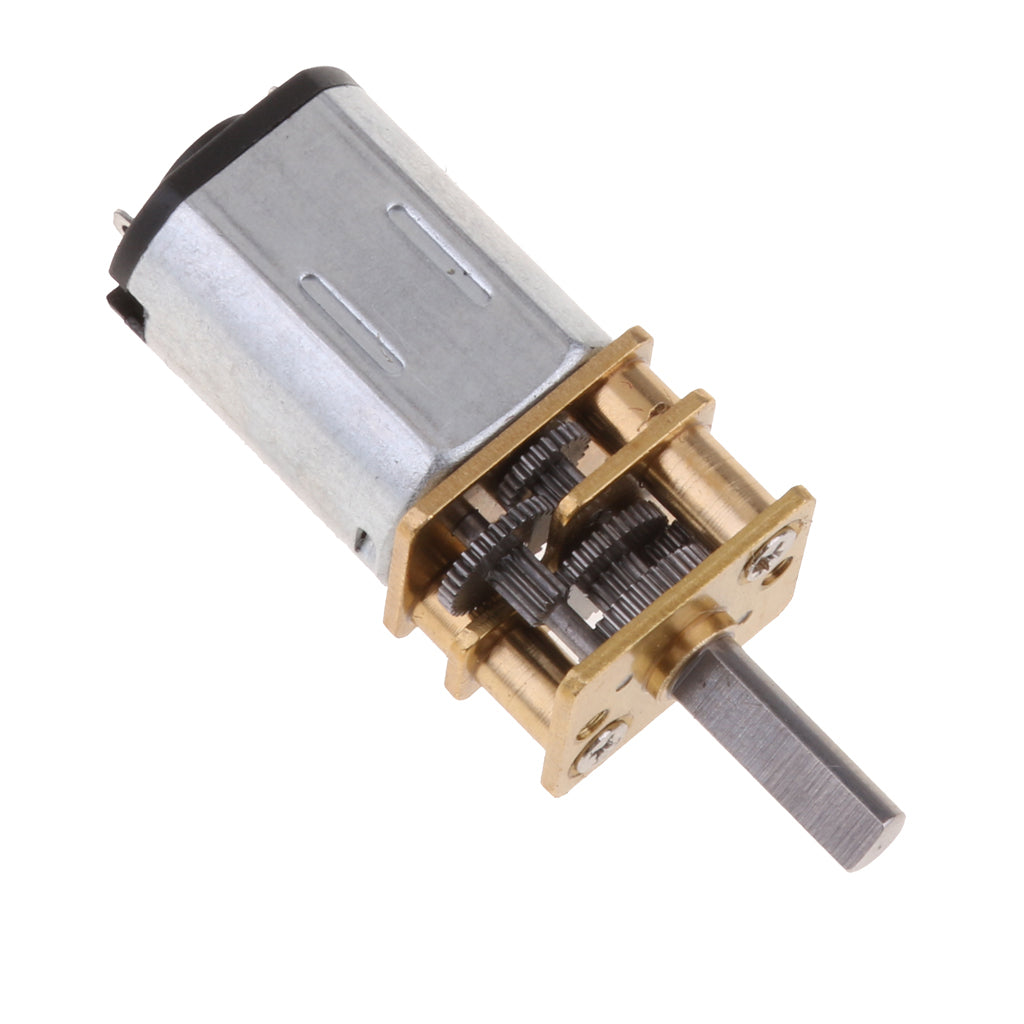

DC Motor 13GA 6V 600rpm

The DC Motor 13GA 6V 600rpm is a 6 V DC gear motor with a fast output speed of 600 rpm, or 10 turns per second. It uses less gear reduction than the slower versions, so it keeps a high speed while still giving more torque than a bare motor, making it a good choice for fast, light robot cars and spinning mechanisms. It runs from four AA batteries or a 6 V supply.

DC Motor 13GA 6V 600rpm Specifications

• Type: DC motor with reduction gearbox
• Model: 13GA
• Rated voltage: 6 V DC
• Output speed: 600 rpm at 6 V (10 turns per second)
• Power source: 4 × AA batteries (6 V) or a 6 V supply
• Direction: reversible by swapping the supply polarity
• Speed control: supply voltage or PWM through a motor driver

DC Motor 13GA 6V 600rpm Applications

• Drive wheels for fast, light robot cars (a 65 mm wheel at 600 rpm moves about 2 m/s)
• Racing and line-following robots
• Spinning platforms and rotating mechanisms
• Battery-powered toys and models
• STEM robotics classes

What's in the Box

• 1 × DC Motor 13GA, 6 V 600 rpm

Tip: Choose a driver that works well at 6 V, such as the TB6612FNG, DRV8833 or L9110S; the L298N loses about 2 V and noticeably reduces the speed. Ramp the PWM up gradually to avoid wheel spin at start.
