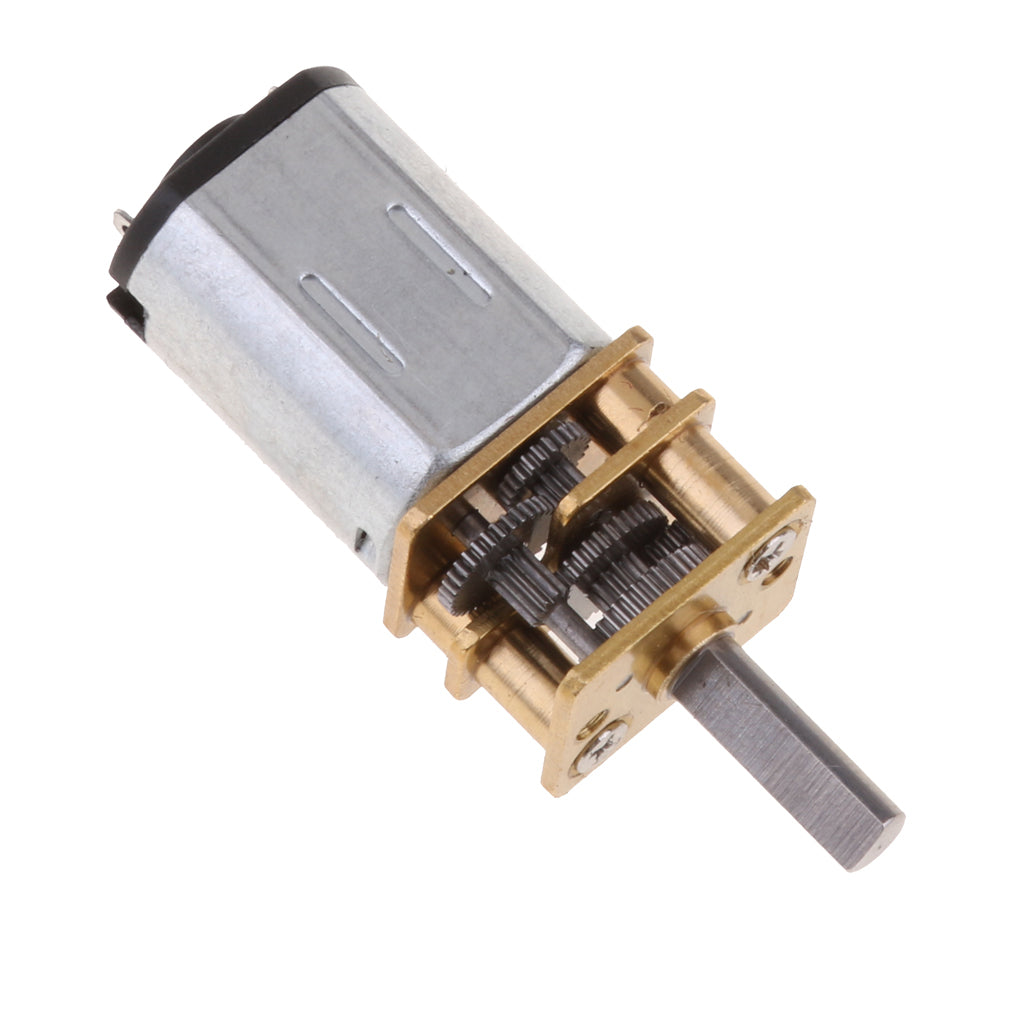

DC Motor 13GA 6V 60rpm

The DC Motor 13GA 6V 60rpm is a 6 V DC gear motor with an output speed of 60 rpm, exactly one turn per second. The higher gear reduction gives more torque at the shaft than the faster 6 V versions, so it can move arms, platforms and slow wheels steadily. It runs from four AA batteries or a 6 V supply, which makes it practical for portable robots and school projects.

DC Motor 13GA 6V 60rpm Specifications

• Type: DC motor with reduction gearbox
• Model: 13GA
• Rated voltage: 6 V DC
• Output speed: 60 rpm at 6 V (one turn per second)
• Power source: 4 × AA batteries (6 V) or a 6 V supply
• Direction: reversible by swapping the supply polarity
• Speed control: supply voltage or PWM through a motor driver

DC Motor 13GA 6V 60rpm Applications

• Robot arms, grippers and pan mechanisms
• Slow drive wheels for small robots (a 65 mm wheel at 60 rpm moves about 0.2 m/s)
• Turntables and rotating displays
• Moving parts in models and toys
• Arduino and ESP32 motor control lessons

What's in the Box

• 1 × DC Motor 13GA, 6 V 60 rpm

Tip: Never power the motor from a microcontroller pin; use a driver such as the TB6612FNG, DRV8833 or L9110S and a separate 6 V battery pack, with the grounds connected together.
