DC Motor 16GA-050 12V 10rpm

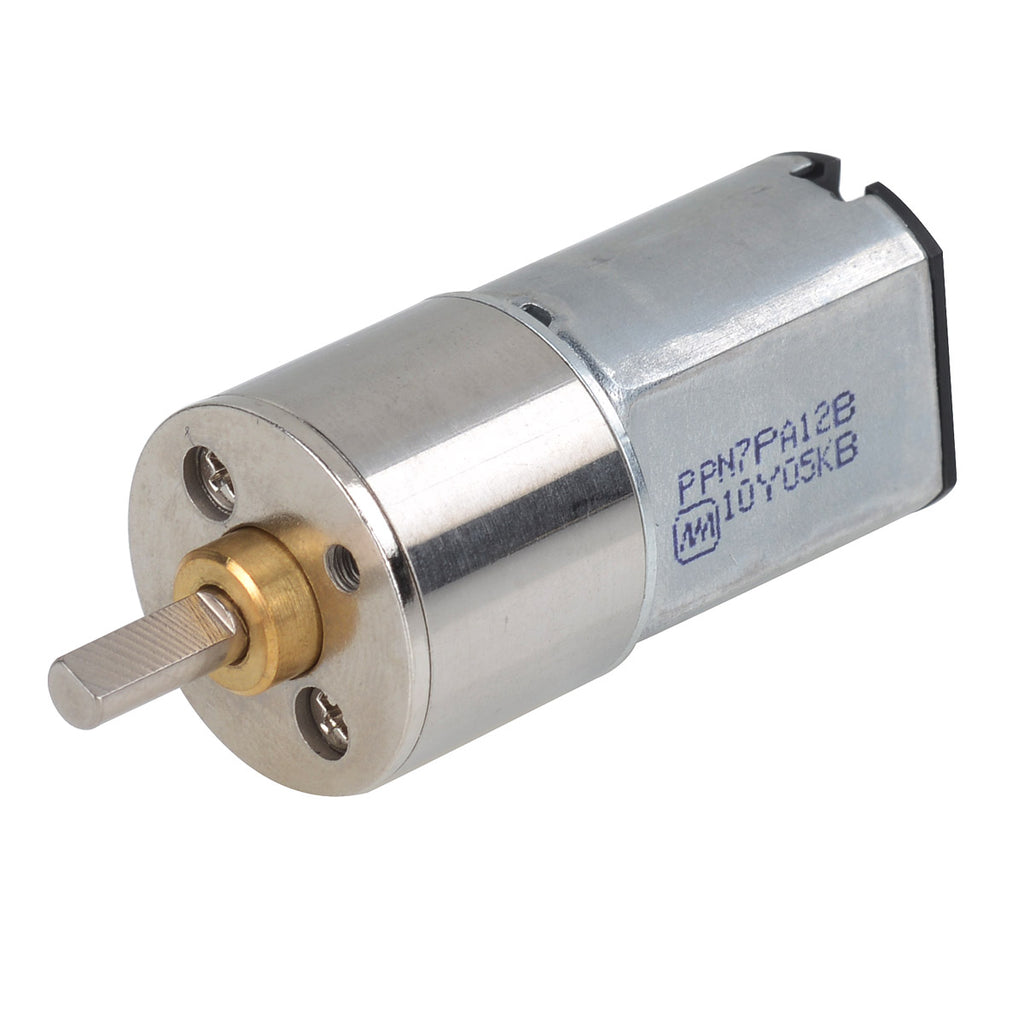

The DC Motor 16GA-050 12V 10rpm is a very slow gear motor that combines an 050-size brushed DC motor with a high-reduction 16GA series gearbox. At 12 V its output shaft turns at about 10 rpm, one revolution every six seconds. It is designed for slow rotating stands, timed feeders and actuators that need gentle, steady movement from a small motor.

DC Motor 16GA-050 12V 10rpm Specifications

• Model: 16GA-050 gear motor
• Type: brushed DC motor with reduction gearbox
• Motor size: 050
• Gearbox: 16 mm diameter class (16GA series)
• Rated voltage: 12 V DC
• Output speed: about 10 rpm at 12 V (6 seconds per turn)
• Direction: reversible by swapping the supply polarity

DC Motor 16GA-050 12V 10rpm Applications

• Slow rotating displays and signs
• Time-lapse camera turntables
• Automatic fish and pet feeders
• Valve, latch and slow actuator projects

What's in the Box

• 1 × DC Motor 16GA-050 12V 10rpm gear motor

Tip: For a feeder that must turn a set number of times, fit a small magnet to the output and a hall sensor beside it, so your Arduino or ESP32 can count whole turns instead of relying on timing.
