DC Motor 16GA-050 12V 300rpm

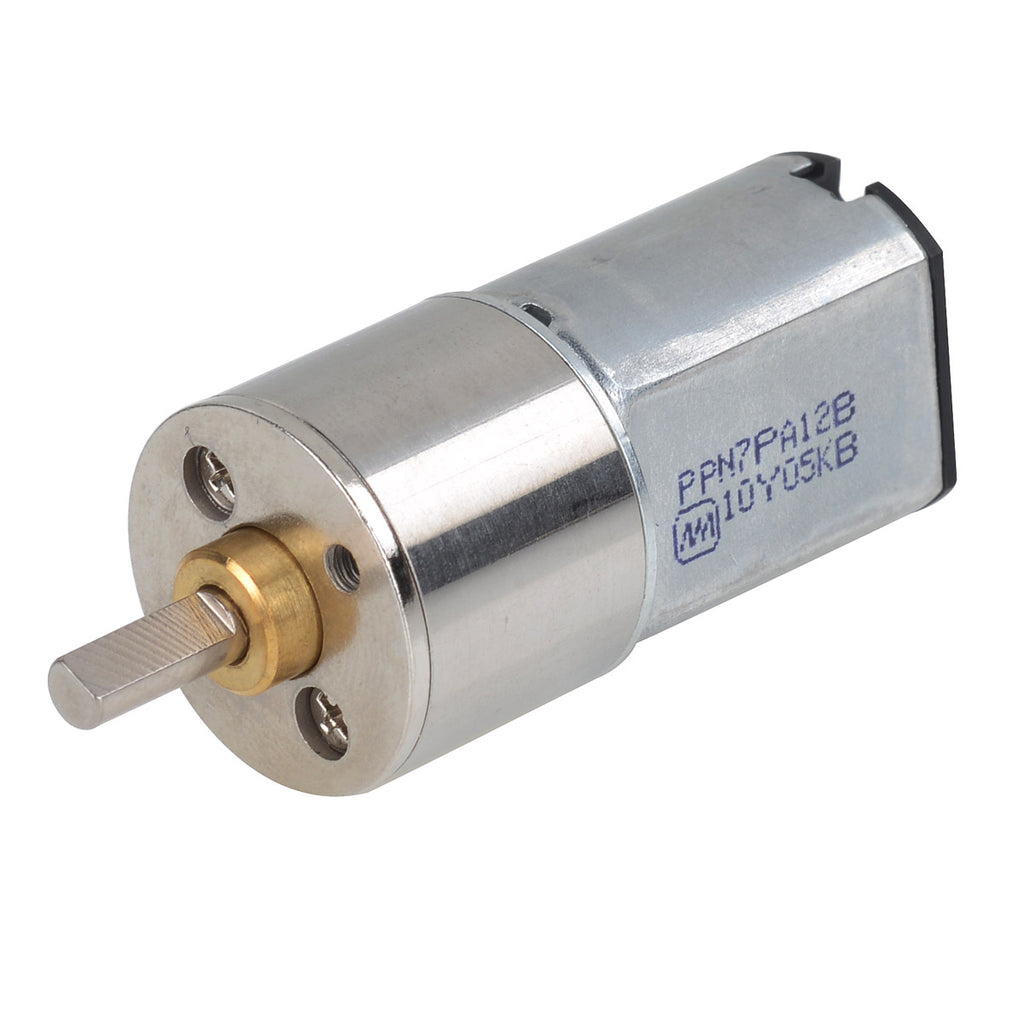

The DC Motor 16GA-050 12V 300rpm is a small DC gear motor with a miniature 16GA series gearbox, rated for 12 V and turning its output shaft at about 300 rpm. The speed is a good match for small robot wheels and conveyors, with more torque than the faster versions in the same range. It suits compact devices and projects powered from 12 V.

DC Motor 16GA-050 12V 300rpm Specifications

• Model: 16GA-050 gear motor
• Type: DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: about 300 rpm at 12 V
• Gearbox: 16 mm diameter class (16GA series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 16GA-050 12V 300rpm Applications

• Wheels for small robots and rovers
• Conveyors, feeders and dispensers
• Turntables and rotating mechanisms
• Models and STEM projects

What's in the Box

• 1 × DC Motor 16GA-050 12V 300rpm gear motor

Tip: Solder a 100 nF capacitor across the motor terminals to reduce electrical noise that can upset sensors and microcontrollers. Drive it through a 12 V-rated H-bridge such as the L298N or TB6612FNG.
