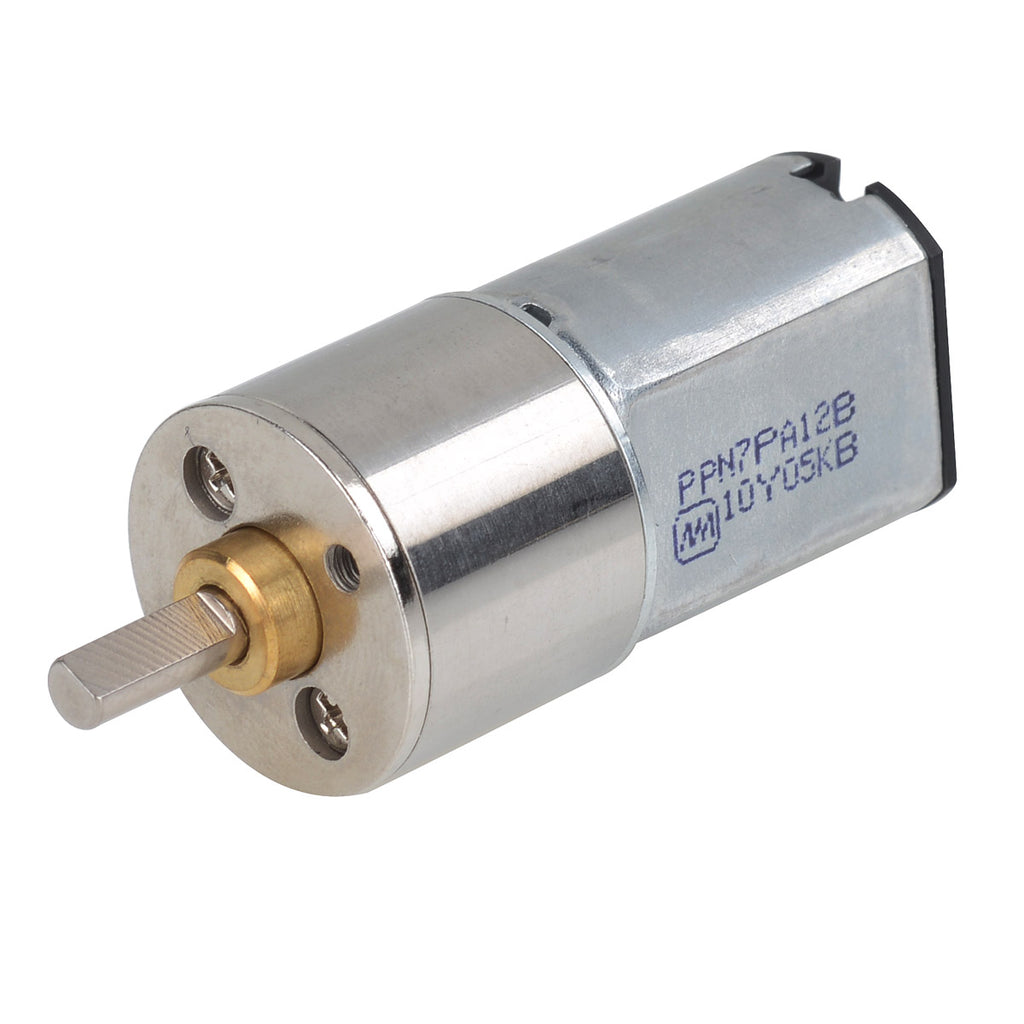

DC Motor 16GA-050 6V 100rpm

The DC Motor 16GA-050 6V 100rpm is a compact gear motor that combines an 050-size brushed DC motor with a 16GA series reduction gearbox. Rated for 6 V, its output shaft turns at about 100 rpm, a slow, controlled speed with more torque than the faster versions of this motor. It suits battery-powered mechanisms that lift, open or feed rather than race.

DC Motor 16GA-050 6V 100rpm Specifications

• Model: 16GA-050 gear motor
• Type: brushed DC motor with reduction gearbox
• Motor size: 050
• Gearbox: 16 mm diameter class (16GA series)
• Rated voltage: 6 V DC
• Output speed: about 100 rpm at 6 V (about 0.6 seconds per turn)
• Direction: reversible by swapping the supply polarity

DC Motor 16GA-050 6V 100rpm Applications

• Slow robot vehicles and crawlers
• Small lifting mechanisms and winches
• Door, flap and lid openers
• Feed rollers for paper or filament in models

What's in the Box

• 1 × DC Motor 16GA-050 6V 100rpm gear motor

Tip: Speed follows the supply voltage: on four NiMH cells (about 4.8 V) instead of 6 V, expect roughly 80 rpm with no load. Use a motor driver such as the DRV8833 between your microcontroller and the motor.
