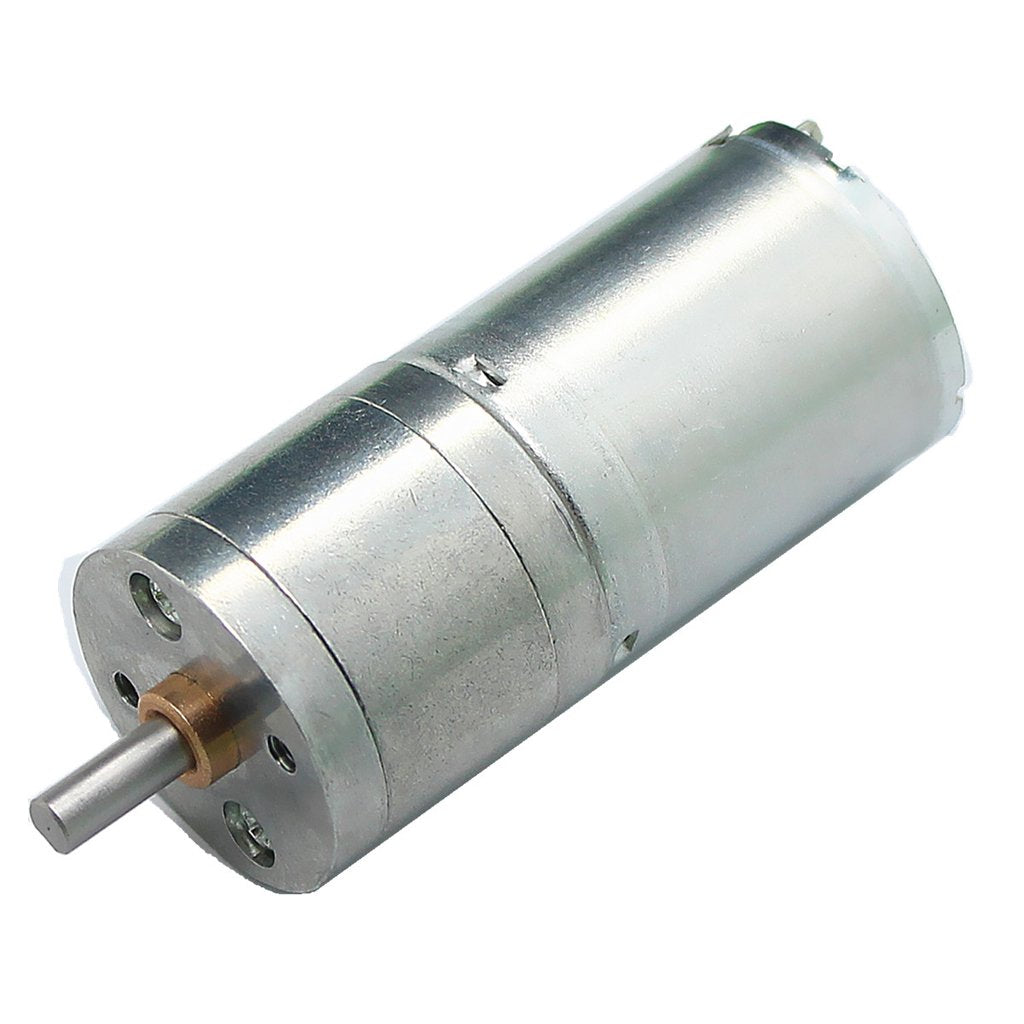

DC Motor 25GA-280 12V 1500rpm

The DC Motor 25GA-280 12V 1500rpm is a fast 12 V DC gear motor from the 25GA series, with a gearbox that gives an output speed of about 1500 rpm. It is meant for jobs that need speed rather than high torque, such as fans, stirrers, spinning mechanisms and fast robot drives with small wheels. It runs from any 12 V supply or battery through a motor driver.

DC Motor 25GA-280 12V 1500rpm Specifications

• Model: 25GA-280 gear motor
• Type: DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: about 1500 rpm at 12 V
• Gearbox: 25 mm diameter class (25GA series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 25GA-280 12V 1500rpm Applications

• Fans, blowers and stirrers
• Fast robot cars with small wheels
• Ball launchers and spinning mechanisms
• DIY tools and STEM projects

What's in the Box

• 1 × DC Motor 25GA-280 12V 1500rpm gear motor

Tip: A fast gear motor gives much less torque than a slow one of the same size, so keep loads light. Use a driver such as the L298N or TB6612FNG for PWM speed control and keep the motor supply separate from the microcontroller's 5 V line.
