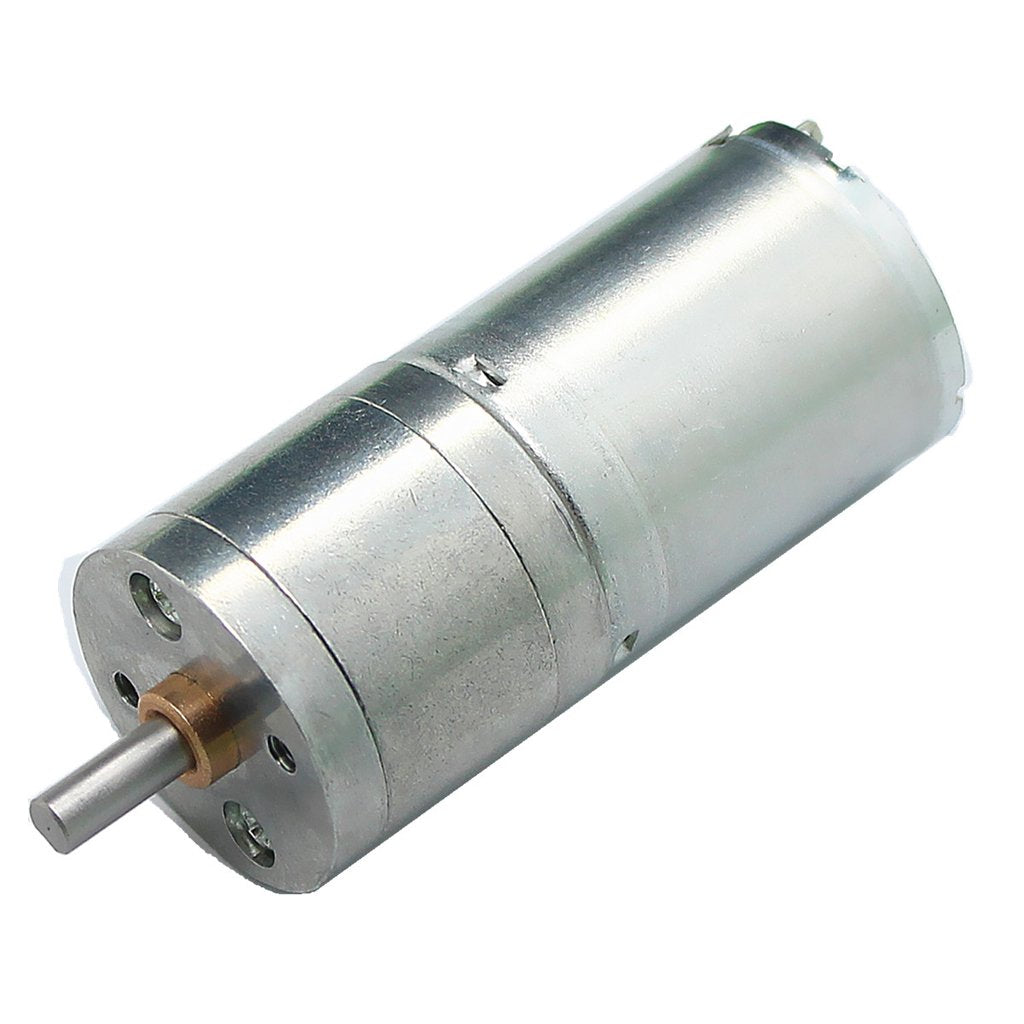

DC Motor 25GA-330T 3V 15rpm

The DC Motor 25GA-330T 3V 15rpm is a very slow DC gear motor with a 25GA series reduction gearbox, rated for 3 V and turning at about 15 rpm, one revolution every four seconds. The high gear reduction gives strong turning force for slow, controlled movement from a small battery supply, such as two AA cells.

DC Motor 25GA-330T 3V 15rpm Specifications

• Model: 25GA-330T gear motor
• Type: DC motor with reduction gearbox
• Rated voltage: 3 V DC
• Output speed: about 15 rpm at 3 V
• Gearbox: 25 mm diameter class (25GA series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a low-voltage motor driver

DC Motor 25GA-330T 3V 15rpm Applications

• Rotating displays and product turntables
• Valve, lock and flap actuators
• Solar tracker and camera pan mechanisms
• Models and STEM projects

What's in the Box

• 1 × DC Motor 25GA-330T 3V 15rpm gear motor

Tip: At this speed the output shaft carries high torque, so mount the motor firmly and fit a limit switch so it stops at the end of travel. Use a low-voltage driver such as the DRV8833 for control from a microcontroller.
