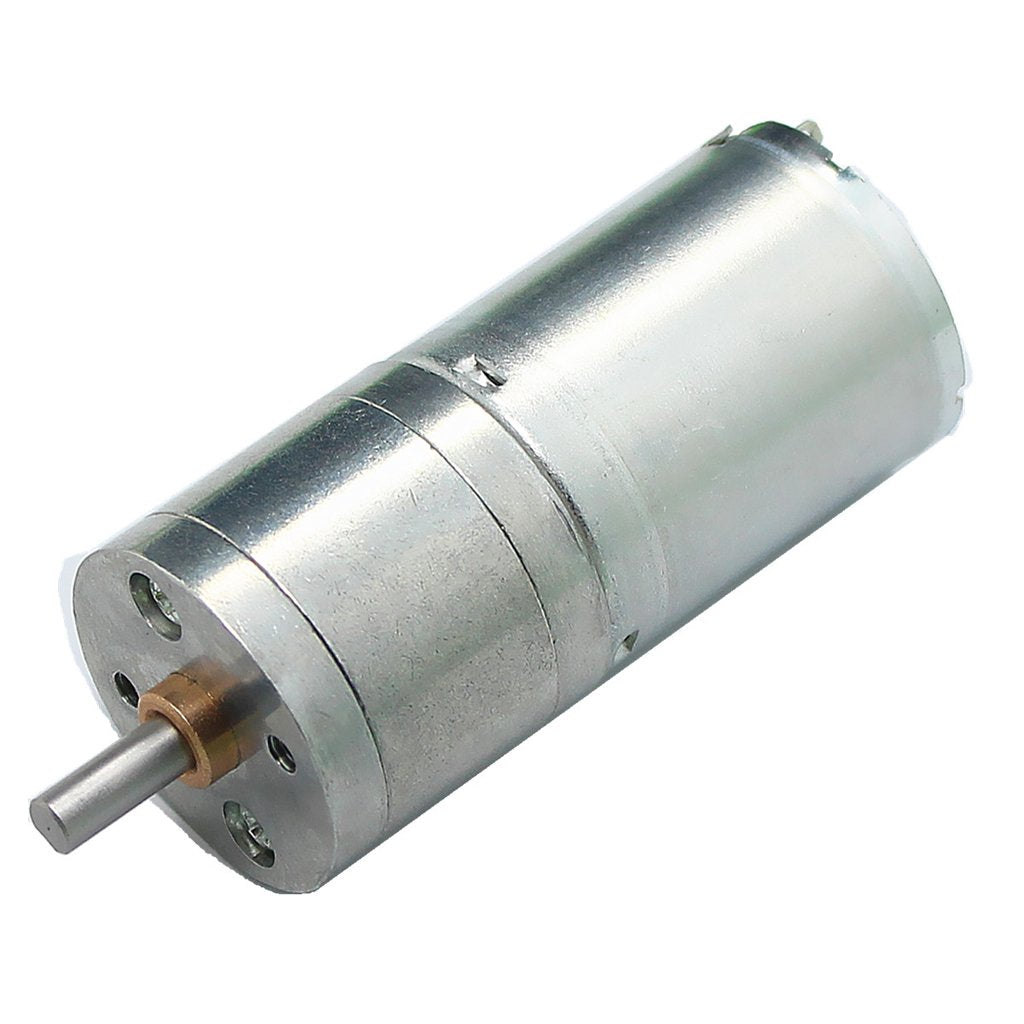

DC Motor 25GA-330T 6V 100rpm

The DC Motor 25GA-330T 6V 100rpm is a DC gear motor with a 25GA series reduction gearbox, rated for 6 V and turning its output shaft at about 100 rpm. The moderate speed gives good control and more force than the faster versions, which helps robots that carry a load or drive on carpet. It runs from four AA cells or any 6 V supply through a motor driver.

DC Motor 25GA-330T 6V 100rpm Specifications

• Model: 25GA-330T gear motor
• Type: DC motor with reduction gearbox
• Rated voltage: 6 V DC
• Output speed: about 100 rpm at 6 V
• Gearbox: 25 mm diameter class (25GA series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 25GA-330T 6V 100rpm Applications

• Robot cars that carry sensors, batteries or a payload
• Tracked rovers
• Winches, lifts and sliding mechanisms
• School and university robotics projects

What's in the Box

• 1 × DC Motor 25GA-330T 6V 100rpm gear motor

Tip: With a 65 mm wheel, 100 rpm gives about 0.34 m/s. To reverse the motor you swap its polarity; an H-bridge driver such as the TB6612FNG or DRV8833 does this for you under control of two microcontroller pins.
