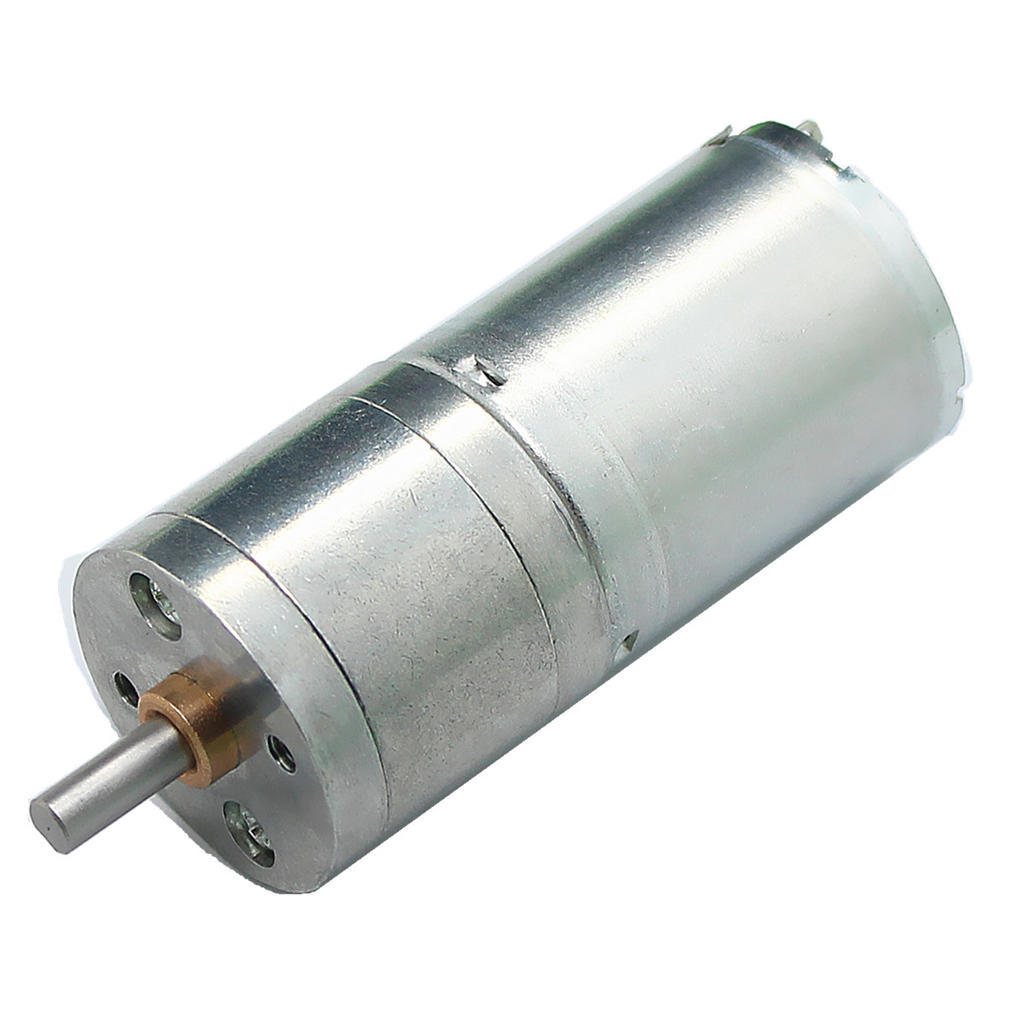

DC Motor 25GA-370 6V 100rpm

The DC Motor 25GA-370 6V 100rpm is a compact gear motor built from a 370-size brushed DC motor and a 25GA series reduction gearbox. At its rated 6 V it turns the output shaft at about 100 rpm, a moderate speed that trades some pace for more pulling force than the faster versions of the same motor. It suits robot cars that climb or carry a load, conveyors and other projects powered from a 6 V battery pack.

DC Motor 25GA-370 6V 100rpm Specifications

• Model: 25GA-370 gear motor
• Type: brushed DC motor with reduction gearbox
• Motor size: 370
• Gearbox: 25 mm diameter class (25GA series)
• Rated voltage: 6 V DC
• Output speed: about 100 rpm at 6 V
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 25GA-370 6V 100rpm Applications

• Drive wheels for robot cars that carry sensors or a payload
• Tracked and all-terrain rovers
• Conveyors, winches and sliding mechanisms
• Robotics clubs and STEM projects

What's in the Box

• 1 × DC Motor 25GA-370 6V 100rpm gear motor

Tip: Control speed and direction with PWM through an H-bridge driver; at 6 V a DRV8833 or TB6612FNG wastes less voltage than an L298N. With a 65 mm wheel, 100 rpm gives about 0.34 m/s, which keeps a robot easy to steer.
