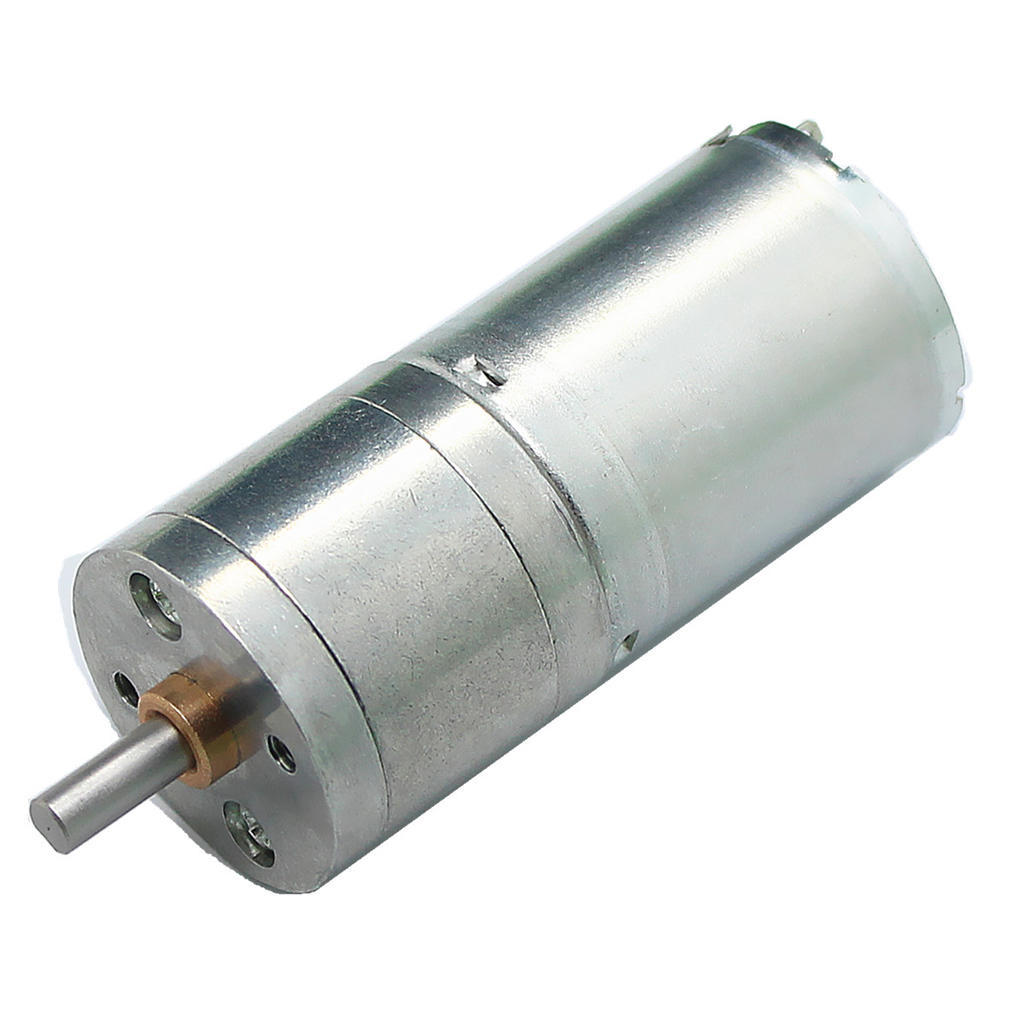

DC Motor 25GA-370 6V 150rpm

The DC Motor 25GA-370 6V 150rpm is a compact gear motor that combines a 370-size brushed DC motor with a 25GA series reduction gearbox. Rated for 6 V, it turns its output shaft at about 150 rpm, a good all-round speed for small robot cars, and it runs well from a 6 V battery pack of four AA cells through a motor driver. It is a popular choice for school robotics, rovers and light automation projects.

DC Motor 25GA-370 6V 150rpm Specifications

• Model: 25GA-370 gear motor
• Type: brushed DC motor with reduction gearbox
• Motor size: 370
• Gearbox: 25 mm diameter class (25GA series)
• Rated voltage: 6 V DC
• Output speed: about 150 rpm at 6 V
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 25GA-370 6V 150rpm Applications

• Drive wheels for 2WD and 4WD robot cars
• Line-follower and obstacle-avoiding robots
• Light conveyors and turntables
• School, university and STEM robotics projects

What's in the Box

• 1 × DC Motor 25GA-370 6V 150rpm gear motor

Tip: With a 65 mm wheel, 150 rpm gives a top speed of about 0.5 m/s, a comfortable pace for a small robot car. At 6 V, a low-drop driver such as the TB6612FNG or DRV8833 keeps more voltage for the motor than an L298N, which loses about 2 V; check that the driver's current rating suits the motor.
