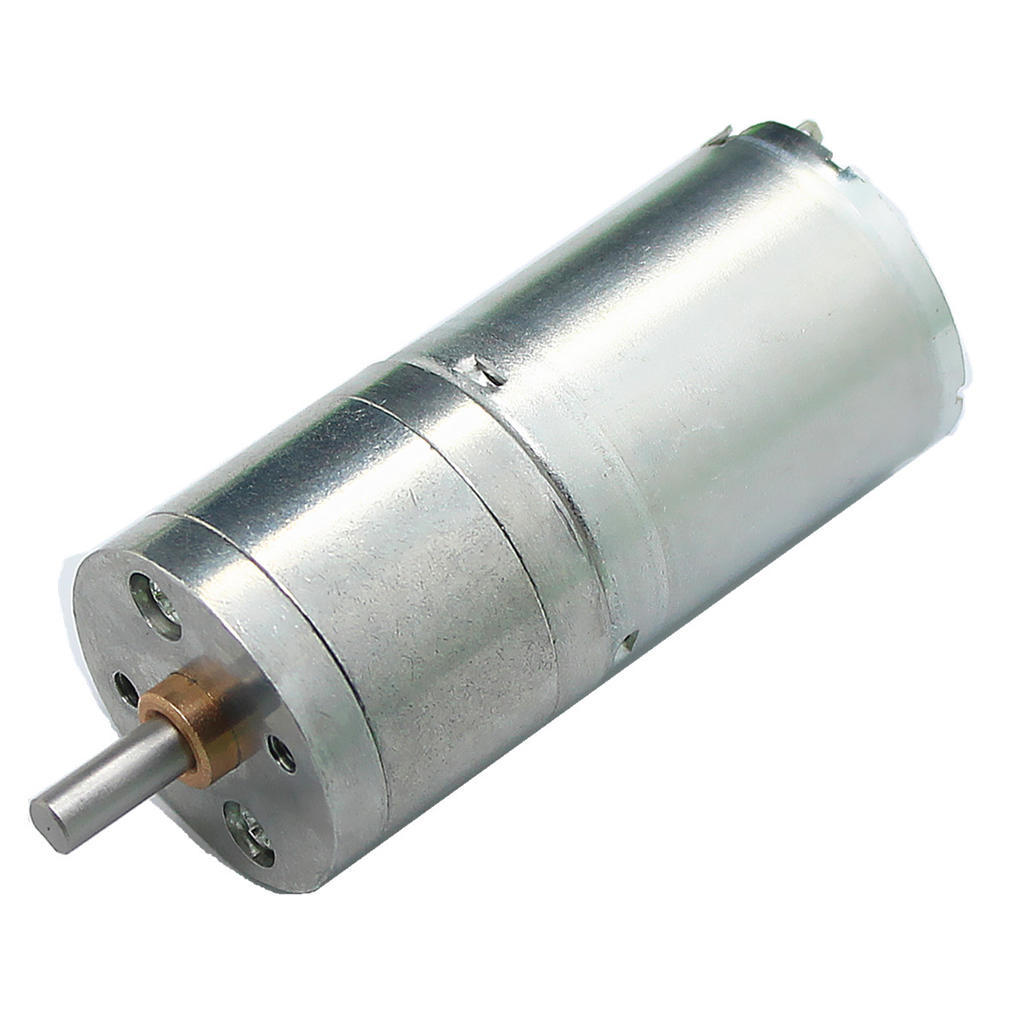

DC Motor 25GA-370 6V 200rpm

The DC Motor 25GA-370 6V 200rpm is a 6 V gear motor that combines a 370-size brushed DC motor with a 25GA series reduction gearbox. Its output shaft turns at about 200 rpm, giving robots a steady pace with more torque than the faster versions. Running from 6 V, it is simple to power from AA batteries or a small regulated supply in classroom and hobby projects.

DC Motor 25GA-370 6V 200rpm Specifications

• Model: 25GA-370 gear motor
• Type: brushed DC motor with reduction gearbox
• Motor size: 370
• Gearbox: 25 mm diameter (25GA series)
• Rated voltage: 6 V DC
• Output speed: about 200 rpm at 6 V
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 25GA-370 6V 200rpm Applications

• Robot cars and rovers for beginners
• Line-following and obstacle-avoiding robots
• Conveyor belt and automation models
• Rotating platforms and STEM projects

What's in the Box

• 1 × DC Motor 25GA-370 6V 200rpm gear motor

Tip: At 200 rpm a 65 mm wheel covers roughly 0.7 m/s before load. Never power the motor from an Arduino or ESP32 pin; use a driver such as the TB6612FNG or L298N and a separate battery for the motor.
