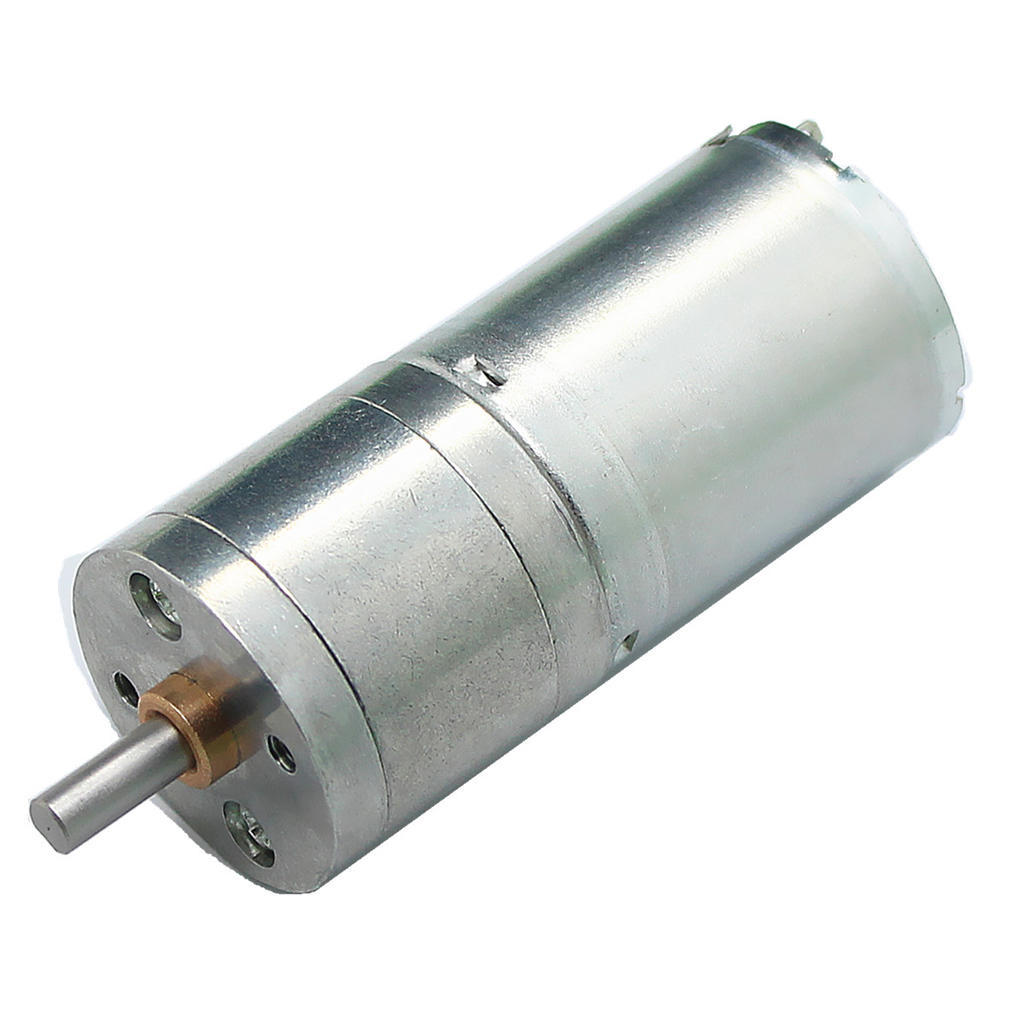

DC Motor 25GA-370 6V 250rpm

The DC Motor 25GA-370 6V 250rpm is a compact gear motor that pairs a 370-size brushed DC motor with a 25GA series reduction gearbox, rated for 6 V. Its output shaft turns at about 250 rpm, a moderate speed with good torque for robot wheels and small machines. It is easy to run from a 4 × AA battery holder in school and hobby robots.

DC Motor 25GA-370 6V 250rpm Specifications

• Model: 25GA-370 gear motor
• Type: brushed DC motor with reduction gearbox
• Motor size: 370
• Gearbox: 25 mm diameter (25GA series)
• Rated voltage: 6 V DC
• Output speed: about 250 rpm at 6 V
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 25GA-370 6V 250rpm Applications

• Robot cars that carry extra weight such as batteries and sensors
• Line followers and educational robots
• Small conveyors and sorting models
• Pan and rotating platforms

What's in the Box

• 1 × DC Motor 25GA-370 6V 250rpm gear motor

Tip: With a 65 mm wheel, 250 rpm gives roughly 0.85 m/s before load, a comfortable speed for indoor robots. Mount the motor with a 25GA motor bracket and control direction and speed with a dual H-bridge driver.
