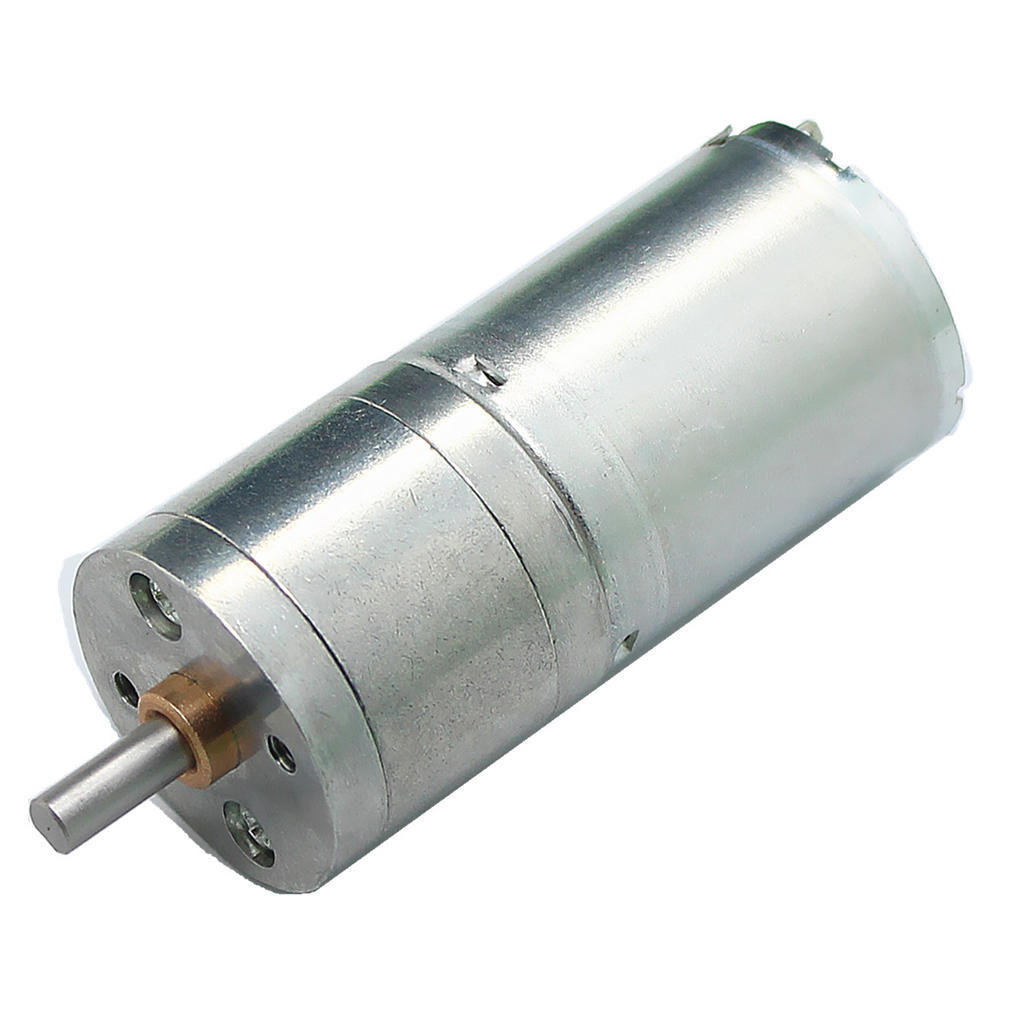

DC Motor 25GA-370 6V 30rpm

The DC Motor 25GA-370 6V 30rpm is a slow, high-torque gear motor that combines a 370-size brushed DC motor with a 25GA series reduction gearbox, rated for 6 V. The output shaft turns at about 30 rpm, one turn every two seconds. It is a good fit for battery-powered projects that need slow, steady rotation with plenty of turning force.

DC Motor 25GA-370 6V 30rpm Specifications

• Model: 25GA-370 gear motor
• Type: brushed DC motor with reduction gearbox
• Motor size: 370
• Gearbox: 25 mm diameter (25GA series)
• Rated voltage: 6 V DC
• Output speed: about 30 rpm at 6 V
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 25GA-370 6V 30rpm Applications

• Automatic pet feeders and dispensers
• Rotating display stands
• Pan mechanisms and slow rotating sensors
• Science fair and classroom models

What's in the Box

• 1 × DC Motor 25GA-370 6V 30rpm gear motor

Tip: Four AA alkaline cells give about 6 V when fresh and less as they discharge, so the speed falls slowly over time; a regulated 6 V supply keeps it steady. Drive the motor through an H-bridge driver, not directly from a microcontroller pin.
