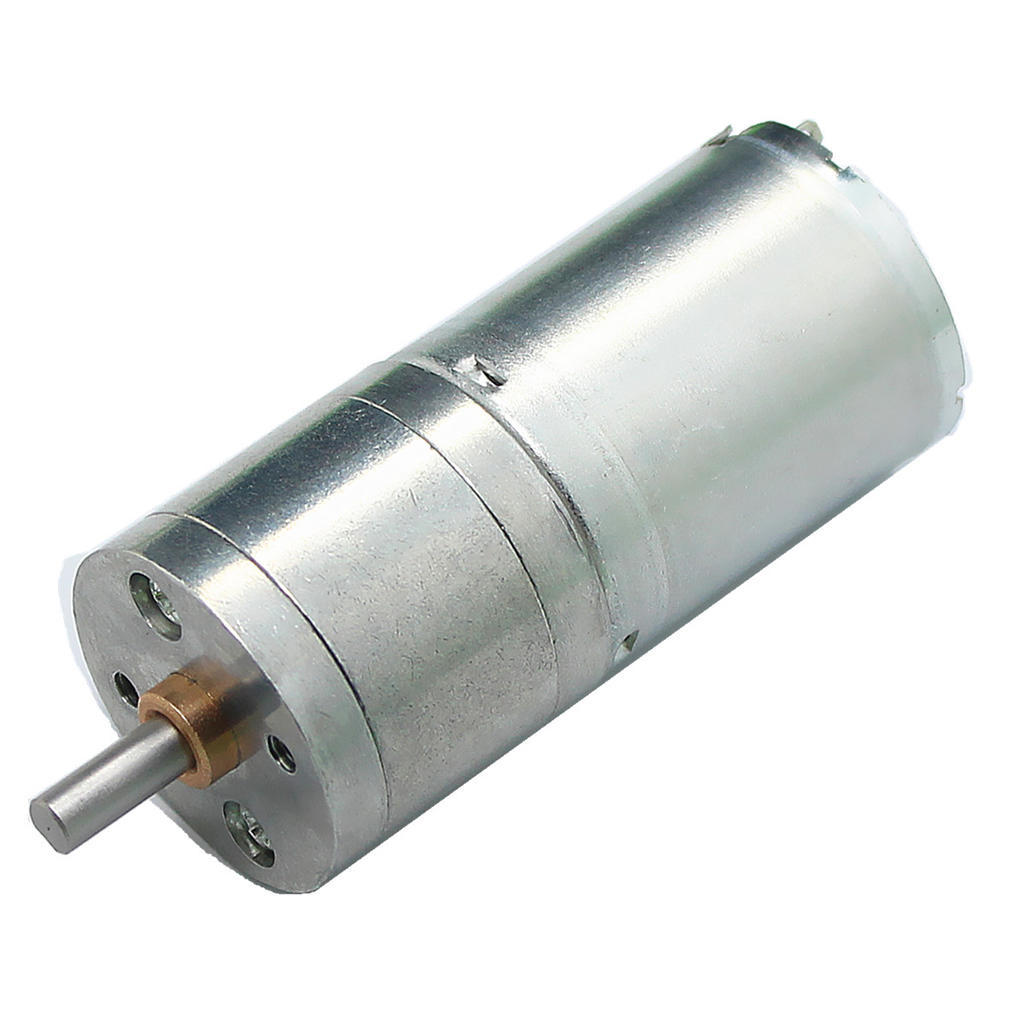

DC Motor 25GA-370 6V 400rpm

The DC Motor 25GA-370 6V 400rpm is a compact 6 V gear motor that combines a 370-size brushed DC motor with a 25GA series reduction gearbox. Its output shaft turns at about 400 rpm, a balance between speed and torque that works well for wheeled robots. The 6 V rating makes it simple to power from four AA batteries or a 6 V adapter.

DC Motor 25GA-370 6V 400rpm Specifications

• Model: 25GA-370 gear motor
• Type: brushed DC motor with reduction gearbox
• Motor size: 370
• Gearbox: 25 mm diameter (25GA series)
• Rated voltage: 6 V DC
• Output speed: about 400 rpm at 6 V
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 25GA-370 6V 400rpm Applications

• Two-wheel and four-wheel drive robot cars
• Line-follower and maze-solving robots
• Bluetooth and Wi-Fi controlled cars with ESP32 or Arduino
• Small conveyor and sorting models

What's in the Box

• 1 × DC Motor 25GA-370 6V 400rpm gear motor

Tip: With a 65 mm wheel, 400 rpm gives roughly 1.4 m/s before load, quick but still controllable with PWM. Use a dual H-bridge driver to run two motors from one board, and connect the driver ground to the microcontroller ground.
