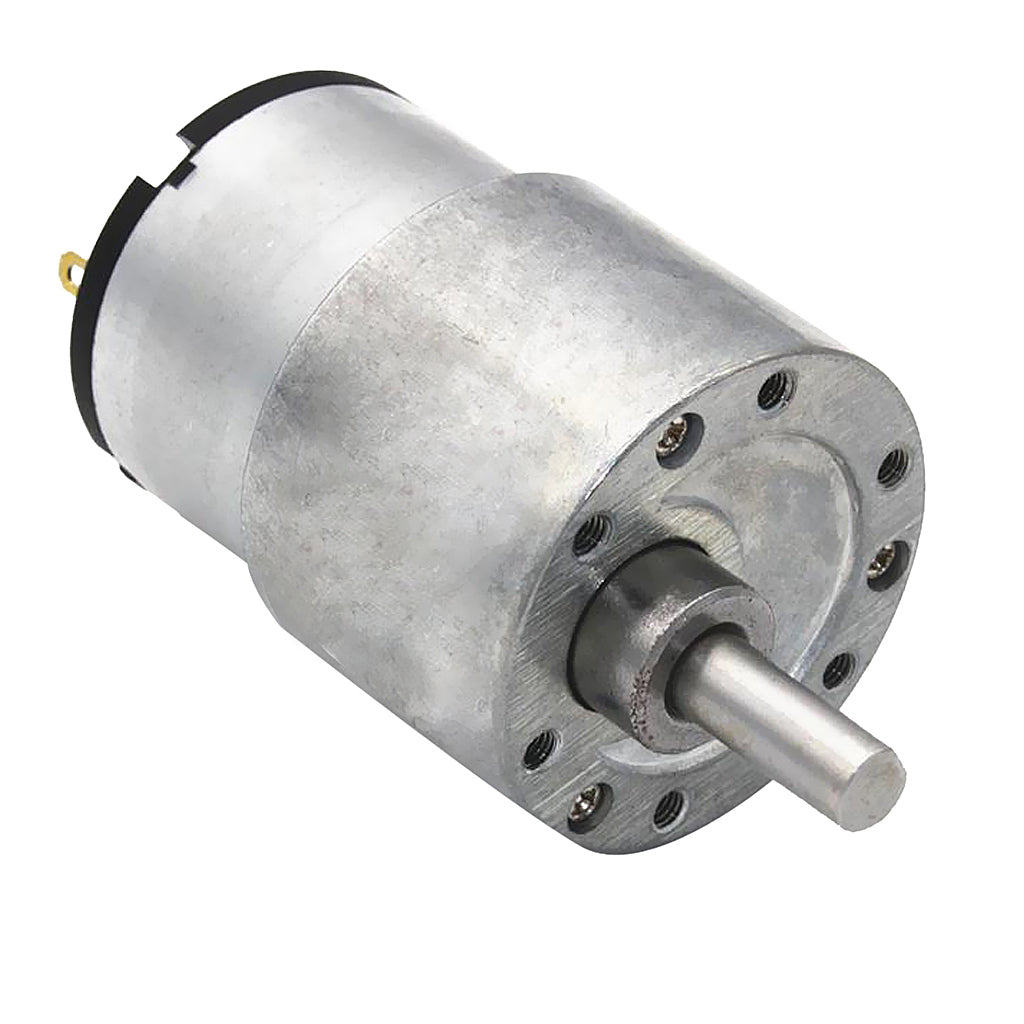

DC Motor 37GB-500TB 12V 100rpm

The DC Motor 37GB-500TB 12V 100rpm is a brushed DC motor with a built-in reduction gearbox from the 37GB series, rated for 12 V and turning its output shaft at about 100 rpm. The slow output and the gear reduction give it more pulling power than the faster versions of the same motor, which suits jobs such as lifting, winding and moving heavier robots. It runs from any 12 V supply or battery through a motor driver.

DC Motor 37GB-500TB 12V 100rpm Specifications

• Model: 37GB-500TB gear motor
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: about 100 rpm at 12 V
• Gearbox: 37 mm diameter class (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-500TB 12V 100rpm Applications

• Winches, small lifts and cable pullers
• Drive wheels for heavier, slower robots and rovers
• Turntables, rotating platforms and display stands
• Gate, curtain and door automation models

What's in the Box

• 1 × DC Motor 37GB-500TB 12V 100rpm gear motor

Tip: Use a motor driver rated for 12 V and for the motor's stall current, such as an L298N or BTS7960 module, never an Arduino or ESP32 pin directly. Do not hold the motor stalled against a hard stop, as the stall current heats the windings quickly.
