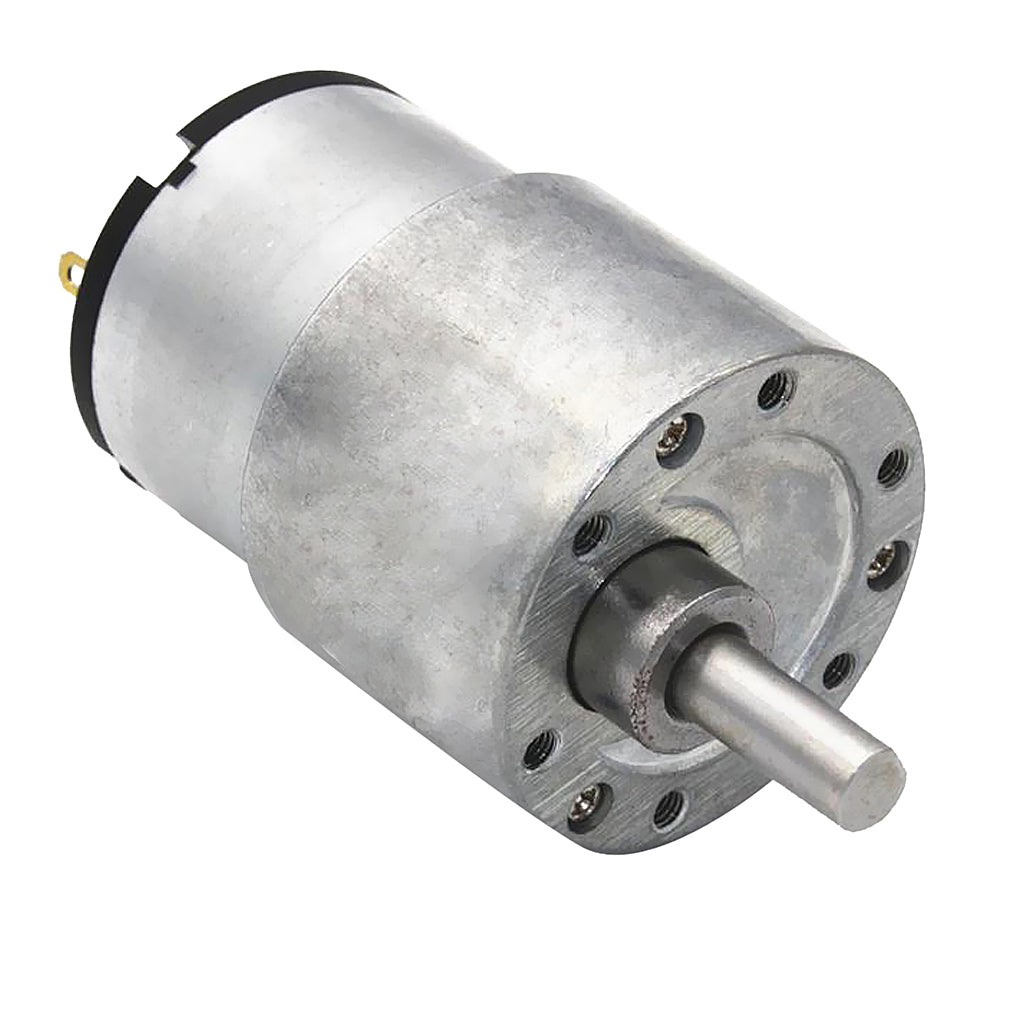

DC Motor 37GB-500TB 12V 120rpm

The DC Motor 37GB-500TB 12V 120rpm is a 12 V DC gear motor from the 37GB series, built from a brushed DC motor and a 37 mm reduction gearbox. Its output shaft turns at 120 rpm, two turns per second, giving steady movement with more torque than the faster versions of the same motor. It suits medium and heavier robots, winches, turntables and gate models.

DC Motor 37GB-500TB 12V 120rpm Specifications

• Model: 37GB-500TB
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: 120 rpm at the gearbox shaft at 12 V
• Gearbox: 37 mm diameter (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-500TB 12V 120rpm Applications

• Drive wheels for medium and heavier robots
• Winches and cable pullers
• Turntables and rotating displays
• Gate, curtain and door models
• Conveyor and feeder drives

What's in the Box

• 1 × DC Motor 37GB-500TB, 12 V 120 rpm

Tip: With a 65 mm wheel, 120 rpm works out to about 0.41 m/s. Use an H-bridge driver rated above the motor's start-up current, such as a BTS7960, and add a fuse to the 12 V battery line.
