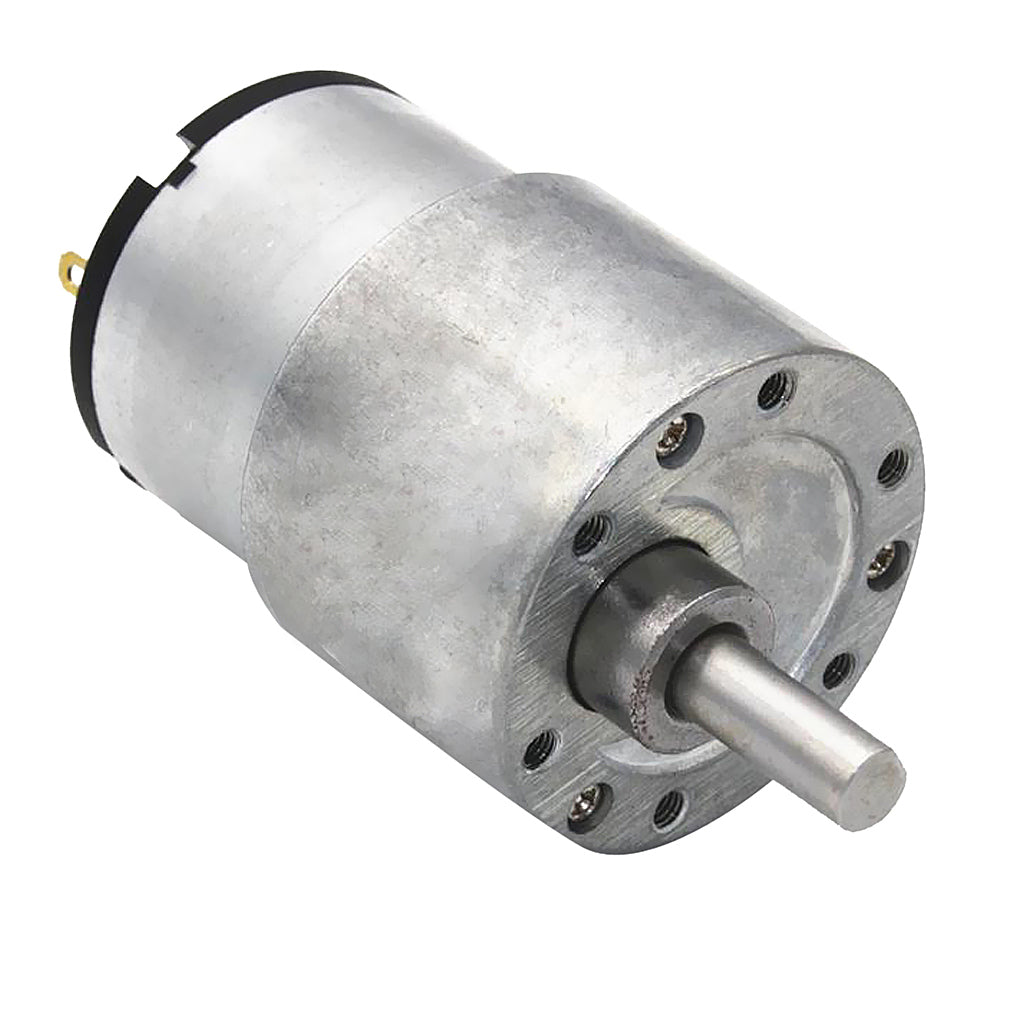

DC Motor 37GB-500TB 12V 15rpm

The DC Motor 37GB-500TB 12V 15rpm is a low-speed 12 V gear motor from the 37GB series, pairing a brushed DC motor with a reduction gearbox. Its output shaft turns at about 15 rpm, one revolution every four seconds, giving slow and controlled movement. It fits solar trackers, rotating displays, slow stirrers and automated openers that run from 12 V.

DC Motor 37GB-500TB 12V 15rpm Specifications

• Model: 37GB-500TB gear motor
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: about 15 rpm at 12 V
• Gearbox: 37 mm diameter class (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-500TB 12V 15rpm Applications

• Rotating displays and turntables
• Solar panel tracker drives
• Slow stirrers and agitators
• Valve and hatch actuators

What's in the Box

• 1 × DC Motor 37GB-500TB 12V 15rpm gear motor

Tip: Run it from a regulated 12 V supply or battery through a motor driver; a lower voltage reduces the speed roughly in proportion. Use a 37GB motor bracket to mount it securely.
