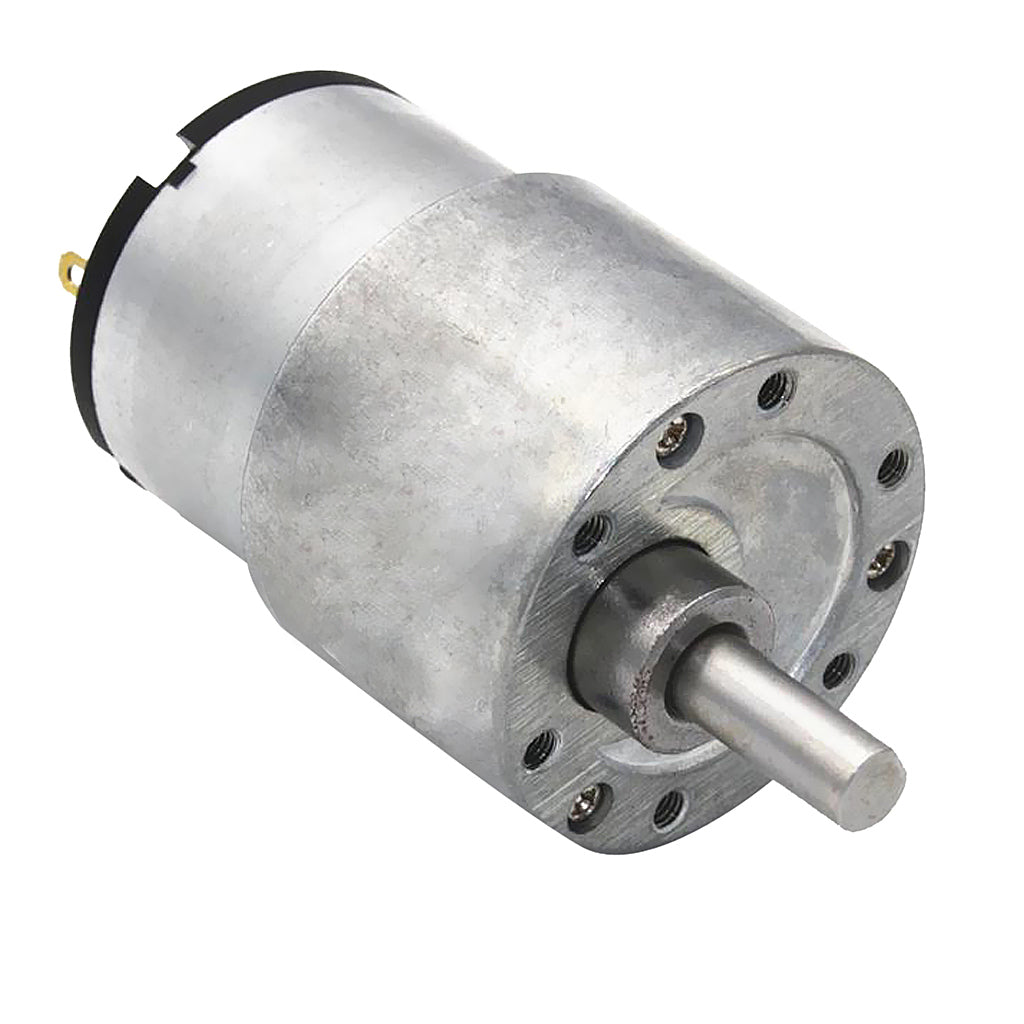

DC Motor 37GB-500TB 12V 3.5rpm

The DC Motor 37GB-500TB 12V 3.5rpm is an extra-slow 12 V brushed DC gear motor from the 37GB series. Its reduction gearbox turns the output shaft at about 3.5 rpm, roughly one revolution every 17 seconds. This very low speed suits mechanisms that must move slowly and precisely, such as time-lapse rigs, rotating displays and solar trackers.

DC Motor 37GB-500TB 12V 3.5rpm Specifications

• Model: 37GB-500TB gear motor
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: about 3.5 rpm at 12 V
• Gearbox: 37 mm diameter class (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-500TB 12V 3.5rpm Applications

• Time-lapse camera turntables and sliders
• Slow rotating product and art displays
• Solar panel trackers
• Slow valves, dampers and hatch openers

What's in the Box

• 1 × DC Motor 37GB-500TB 12V 3.5rpm gear motor

Tip: At this speed the output shaft can apply a lot of force, so secure the load well and add end stops to positioning mechanisms. Drive it from 12 V through a motor driver such as the L298N or BTS7960.
