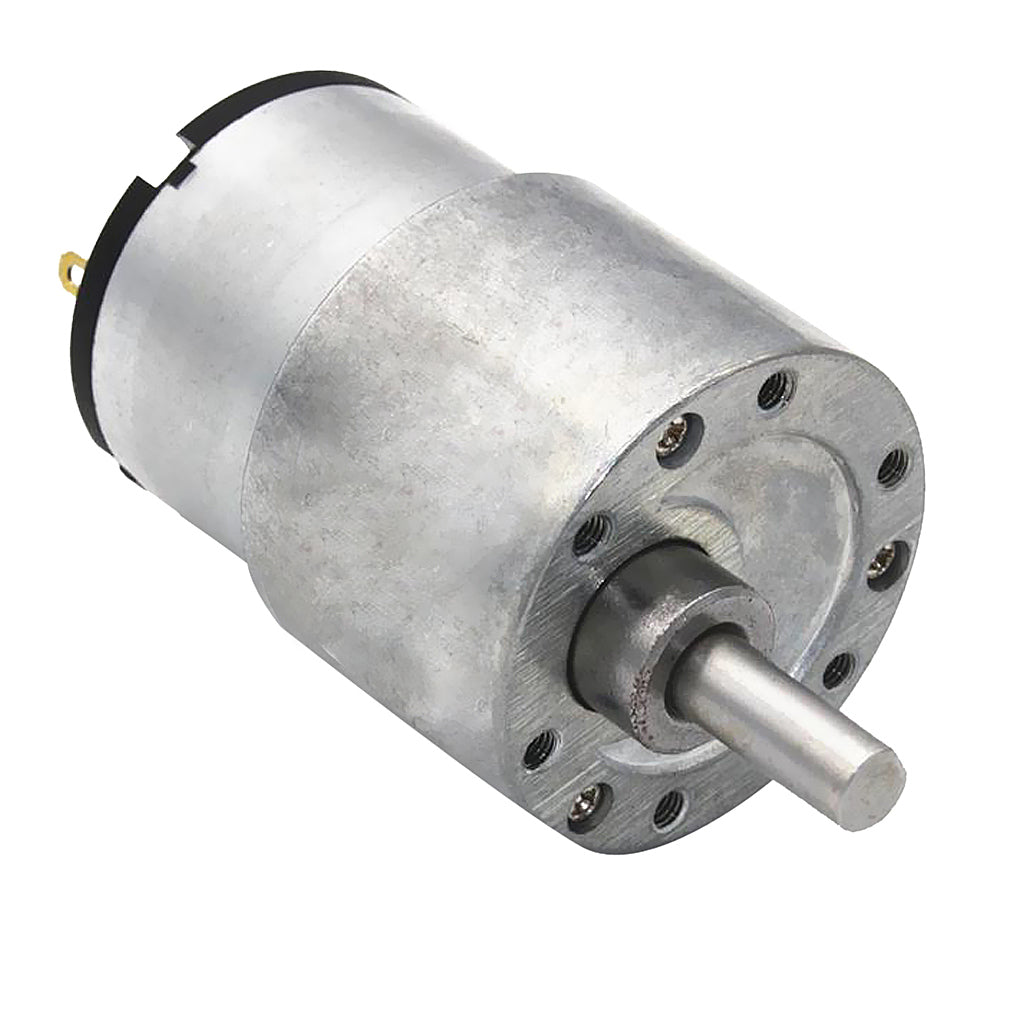

DC Motor 37GB-500TB 12V 300rpm

The DC Motor 37GB-500TB 12V 300rpm is a 12 V DC gear motor from the 37GB series, pairing a brushed DC motor with a 37 mm reduction gearbox. Its output shaft turns at 300 rpm, five turns per second, a quick speed for moving robots and machines while the gearbox keeps useful torque. It suits robot cars, conveyors, mixers and DIY machines powered from a 12 V battery or adapter.

DC Motor 37GB-500TB 12V 300rpm Specifications

• Model: 37GB-500TB
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: 300 rpm at the gearbox shaft at 12 V
• Gearbox: 37 mm diameter (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-500TB 12V 300rpm Applications

• Drive wheels for robot cars and rovers
• Conveyor belts and pulley drives
• Mixers, stirrers and spinning mechanisms
• Belt drives in DIY machines
• 12 V battery projects

What's in the Box

• 1 × DC Motor 37GB-500TB, 12 V 300 rpm

Tip: With a 65 mm wheel, 300 rpm works out to about 1 m/s. Use a 12 V motor driver such as an L298N or BTS7960, set the speed with PWM, and never connect the motor straight to an Arduino or ESP32 pin.
