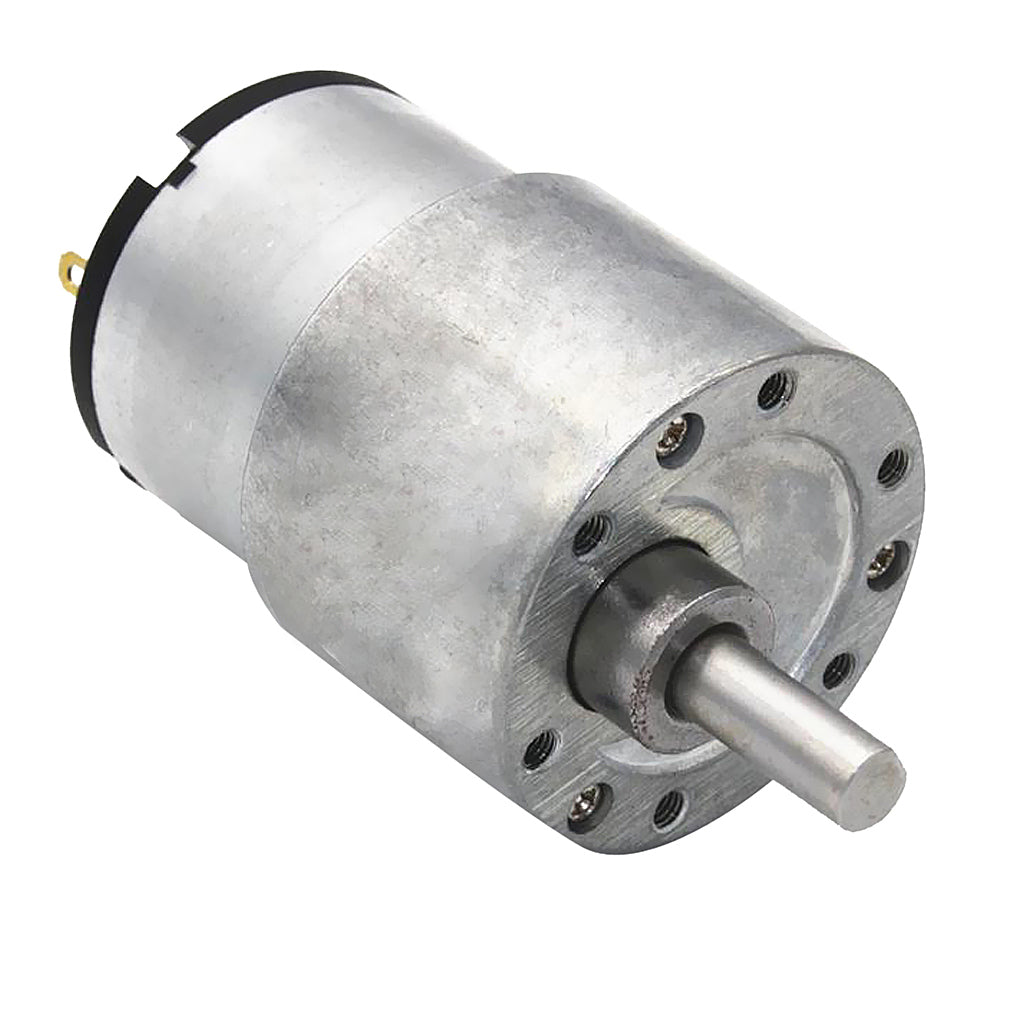

DC Motor 37GB-500TB 12V 30rpm

The DC Motor 37GB-500TB 12V 30rpm is a 12 V brushed DC motor with a built-in 37GB series reduction gearbox that brings the output shaft down to about 30 rpm, or one turn every two seconds. The slow, steady output is ideal for mechanisms that move loads at a controlled pace, such as winches, conveyors and automatic openers.

DC Motor 37GB-500TB 12V 30rpm Specifications

• Model: 37GB-500TB gear motor
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: about 30 rpm at 12 V
• Gearbox: 37 mm diameter class (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-500TB 12V 30rpm Applications

• Winches and cable winding drums
• Slow conveyor belts and feeders
• Curtain, blind and window openers
• Rotating platforms and display stands

What's in the Box

• 1 × DC Motor 37GB-500TB 12V 30rpm gear motor

Tip: Use a motor driver rated for 12 V and for the motor's stall current, such as a BTS7960 module, and set the speed with PWM. A 37GB motor bracket and a matching shaft coupler make mounting easier.
