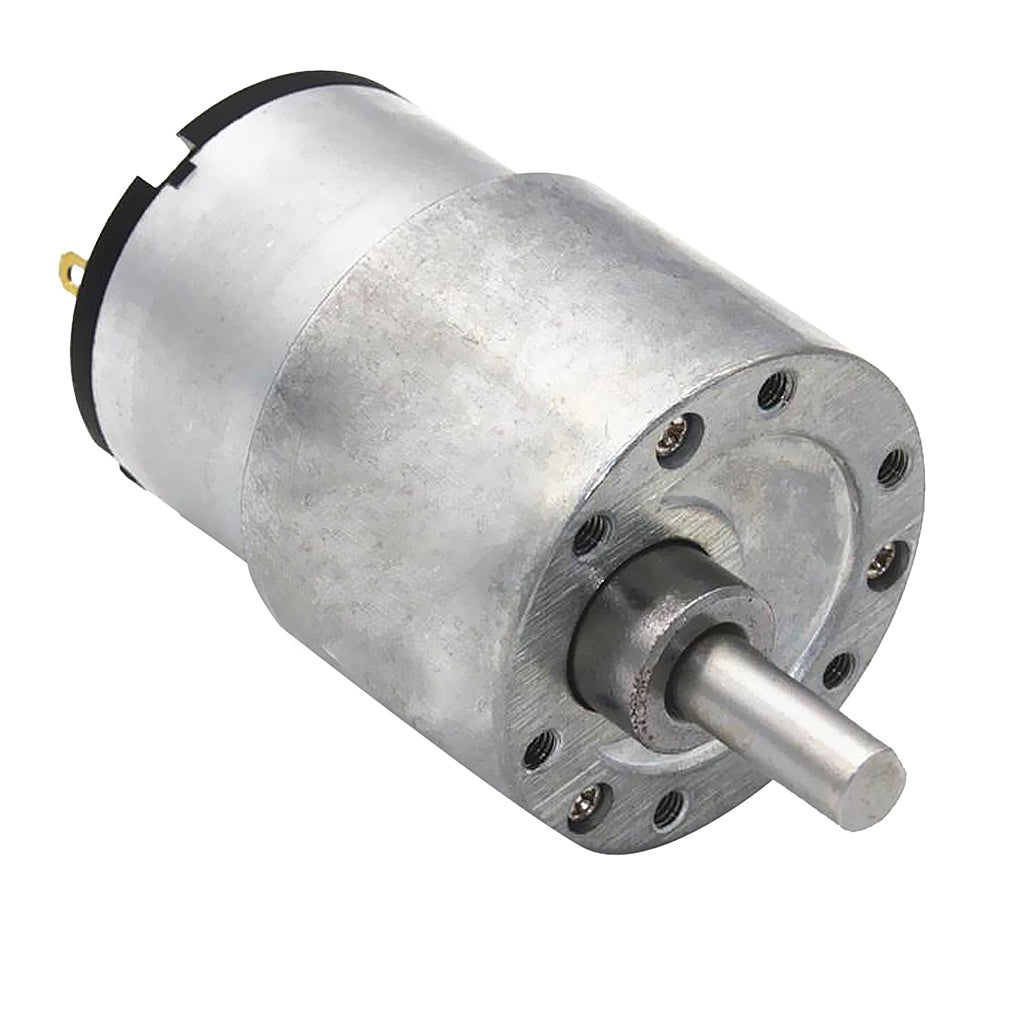

DC Motor 37GB-500TB 12V 40rpm

The DC Motor 37GB-500TB 12V 40rpm is a brushed DC gear motor from the 37GB series, rated for 12 V with an output speed of about 40 rpm. The gearbox reduces the motor speed to give slow, strong rotation that can move loads directly, without extra gears or pulleys. It is well suited to lifting mechanisms, turntables and slow robots running from a 12 V supply.

DC Motor 37GB-500TB 12V 40rpm Specifications

• Model: 37GB-500TB gear motor
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: about 40 rpm at 12 V
• Gearbox: 37 mm diameter class (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-500TB 12V 40rpm Applications

• Small lifts, hoists and winches
• Turntables and rotating display stands
• Robot arms and slow, heavy robot platforms
• Sliding doors, gates and window openers

What's in the Box

• 1 × DC Motor 37GB-500TB 12V 40rpm gear motor

Tip: Add limit switches at the ends of travel for lifts and doors so the motor stops before it stalls. Control it with a 12 V H-bridge driver such as the BTS7960 rather than a microcontroller pin.
