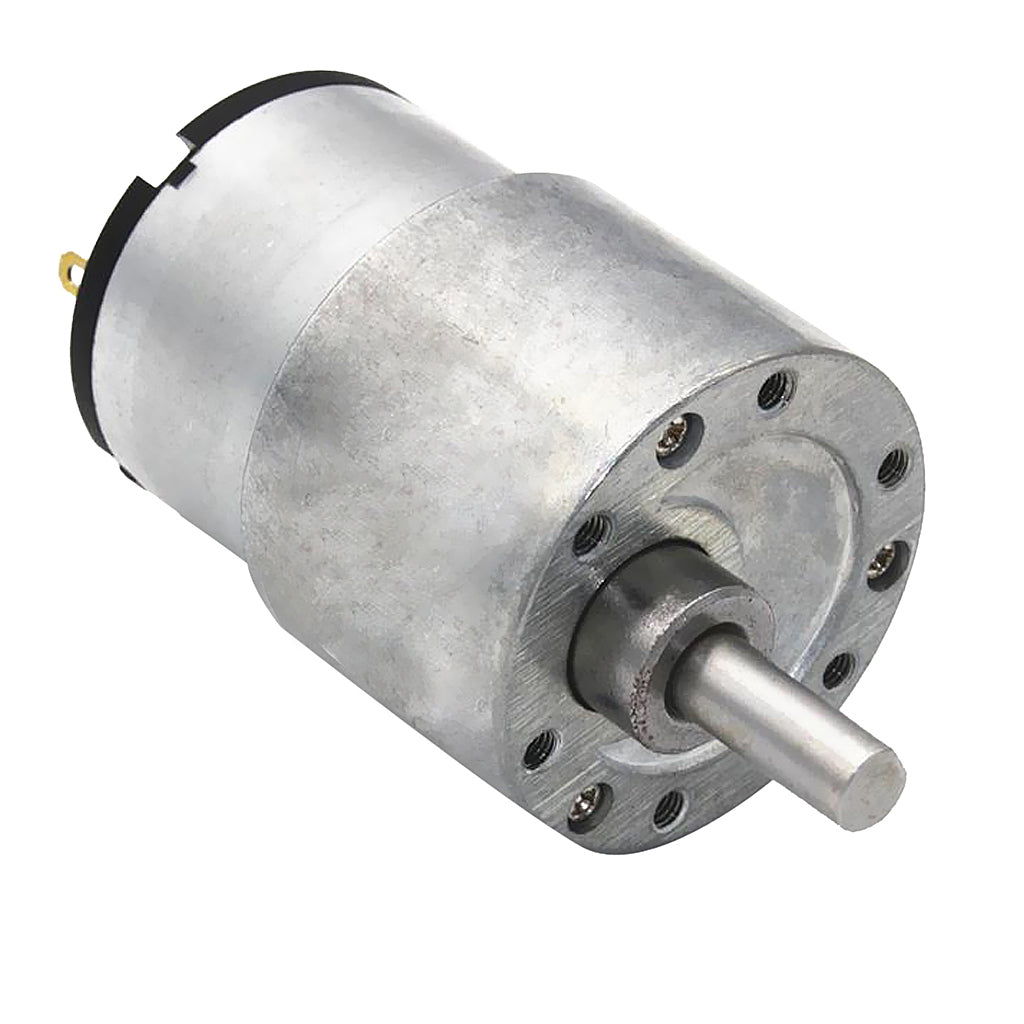

DC Motor 37GB-500TB 12V 60rpm

The DC Motor 37GB-500TB 12V 60rpm is a 12 V geared DC motor from the 37GB series, combining a brushed motor with a reduction gearbox. Its output shaft turns at about 60 rpm, one revolution per second, which is slow enough for controlled movement but still quick enough for wheeled robots. It is a practical choice for rovers, winches and conveyors powered from 12 V.

DC Motor 37GB-500TB 12V 60rpm Specifications

• Model: 37GB-500TB gear motor
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: about 60 rpm at 12 V
• Gearbox: 37 mm diameter class (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-500TB 12V 60rpm Applications

• Drive wheels for slow, heavy-duty rovers and robot platforms
• Winches, small hoists and cable pullers
• Conveyor belts and feeders
• Automatic curtain, door and gate models

What's in the Box

• 1 × DC Motor 37GB-500TB 12V 60rpm gear motor

Tip: Set the speed with PWM through a motor driver such as the BTS7960 or L298N, and add a fuse in the 12 V battery line. To change direction, swap the two motor wires or let the H-bridge reverse them.
