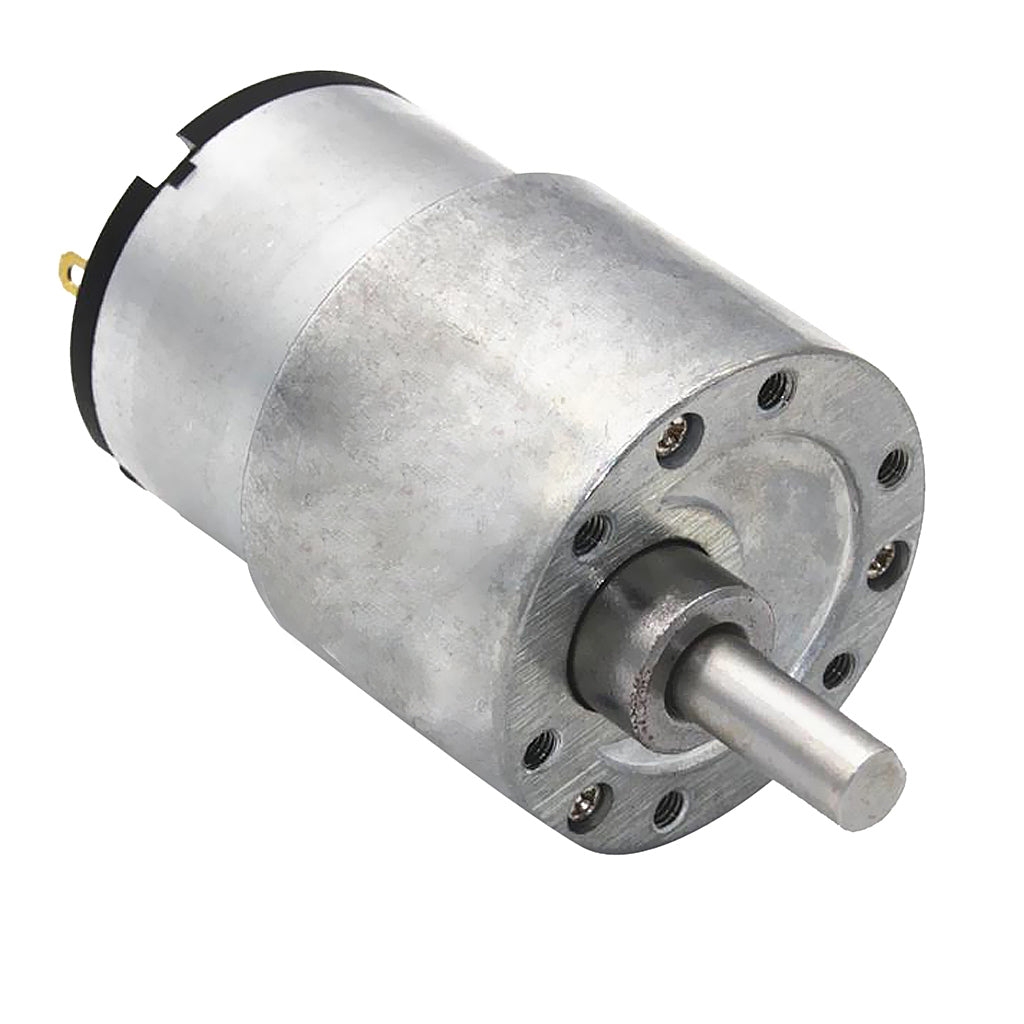

DC Motor 37GB-500TB 12V 80rpm

The DC Motor 37GB-500TB 12V 80rpm is a brushed DC motor with a built-in reduction gearbox from the 37GB series. Rated for 12 V, it turns its output shaft at about 80 rpm, a steady middle speed that balances pace and pulling power. It suits robot drive wheels, conveyors and automation projects that run from a 12 V supply or battery.

DC Motor 37GB-500TB 12V 80rpm Specifications

• Model: 37GB-500TB gear motor
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: about 80 rpm at 12 V
• Gearbox: 37 mm diameter class (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-500TB 12V 80rpm Applications

• Drive wheels for medium and heavy robots and rovers
• Conveyor belts and sorting machine models
• Winches, cable pullers and sliding gates
• Rotating platforms and DIY automation

What's in the Box

• 1 × DC Motor 37GB-500TB 12V 80rpm gear motor

Tip: Drive the motor through an H-bridge module rated for 12 V and for the motor's stall current, such as an L298N or BTS7960, never straight from an Arduino or ESP32 pin. Mount it with a 37GB motor bracket so the gearbox is held firmly.
