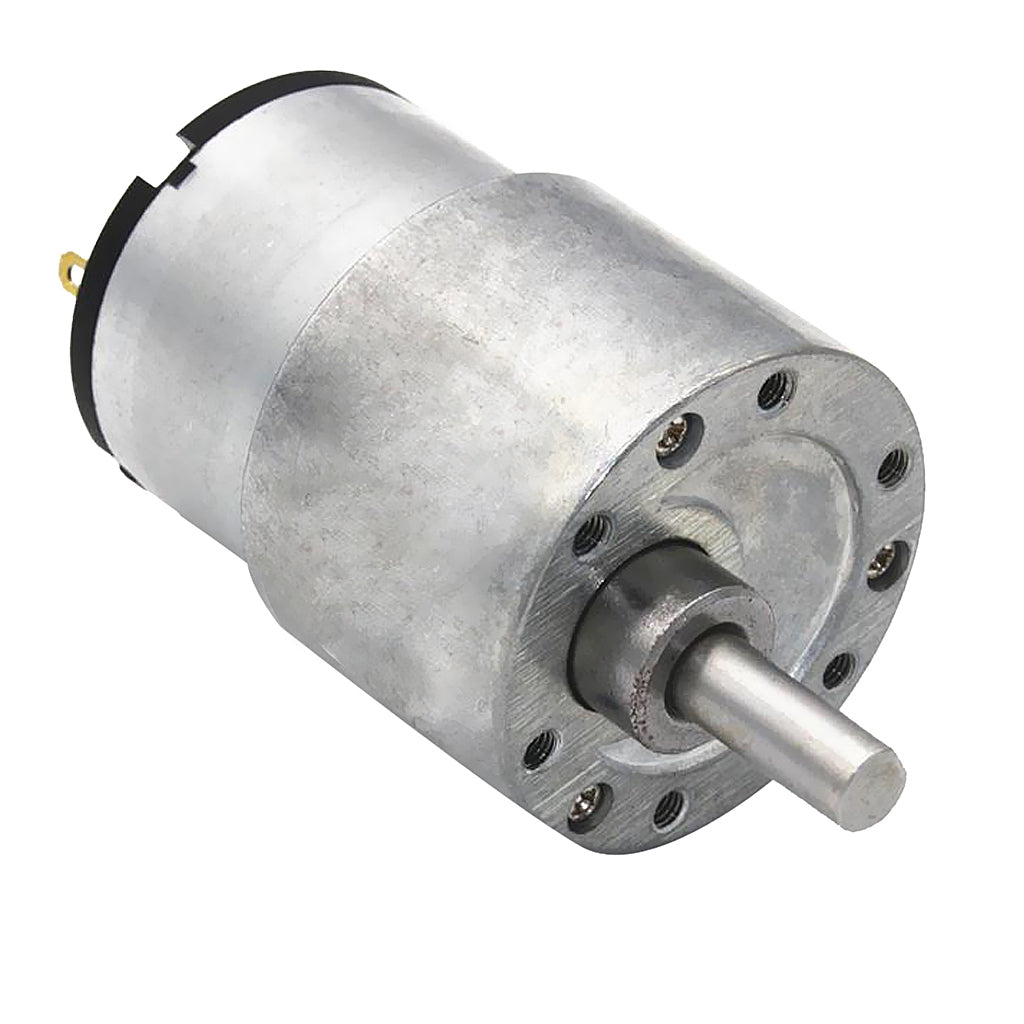

DC Motor 37GB-500TB 6V 150rpm

The DC Motor 37GB-500TB 6V 150rpm is the 6 V version of the 37GB series gear motor, combining a brushed DC motor with a reduction gearbox. It turns its output shaft at about 150 rpm, a good speed for driving robot wheels, and runs from low-voltage supplies such as a 6 V battery pack. It suits robot cars, rovers and school robotics projects.

DC Motor 37GB-500TB 6V 150rpm Specifications

• Model: 37GB-500TB gear motor
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 6 V DC
• Output speed: about 150 rpm at 6 V
• Gearbox: 37 mm diameter class (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-500TB 6V 150rpm Applications

• Drive wheels for robot cars and rovers
• Line-follower and obstacle-avoiding robots
• Conveyor and sorting machine models
• STEM and school robotics projects

What's in the Box

• 1 × DC Motor 37GB-500TB 6V 150rpm gear motor

Tip: Use a motor driver rated for 6 V and for the motor's stall current. The L298N loses about 2 V, which noticeably slows a 6 V motor, so a MOSFET-based driver is a better match.
