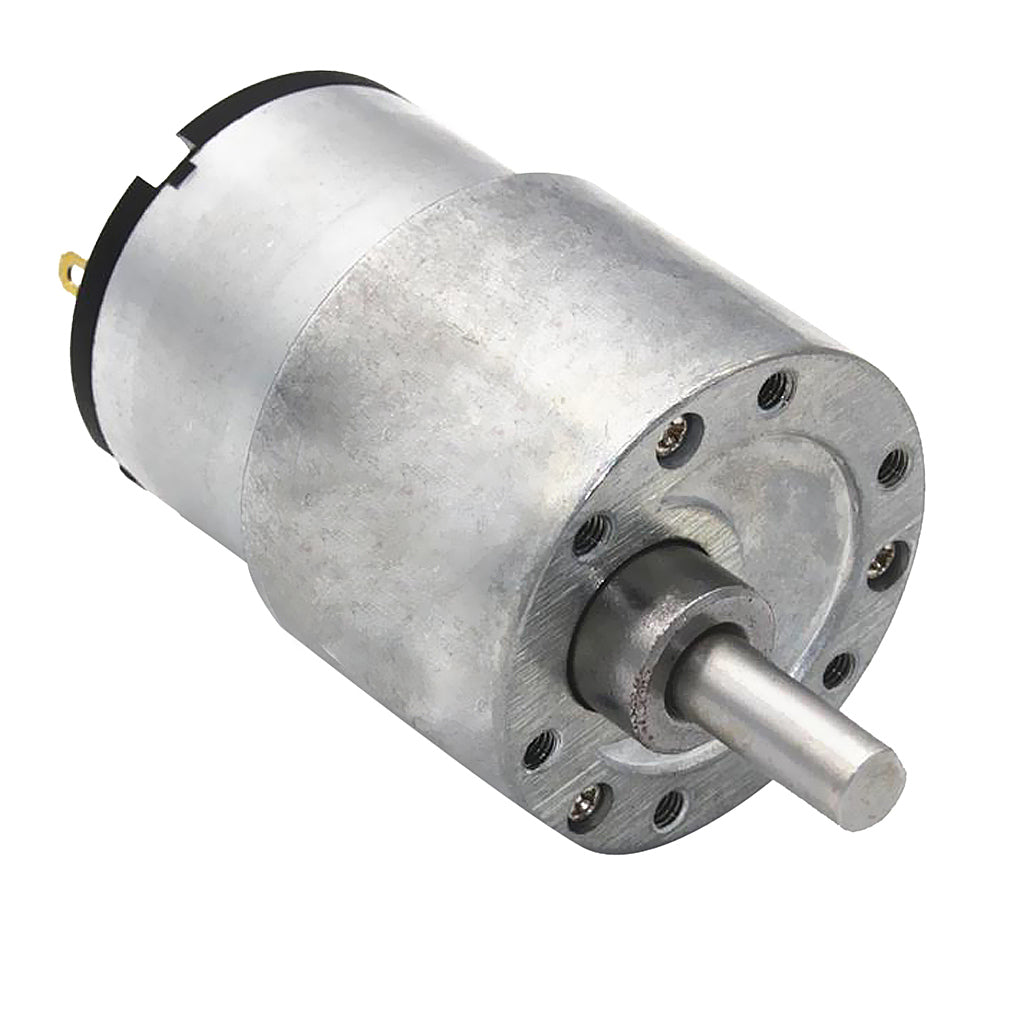

DC Motor 37GB-500TB 6V 30rpm

The DC Motor 37GB-500TB 6V 30rpm is a 6 V brushed DC motor with a built-in 37GB series reduction gearbox that turns the output shaft at about 30 rpm, one revolution every two seconds. The slow geared output moves loads at a controlled pace, so it suits winches, conveyors and openers in projects powered by a 6 V battery or supply.

DC Motor 37GB-500TB 6V 30rpm Specifications

• Model: 37GB-500TB gear motor
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 6 V DC
• Output speed: about 30 rpm at 6 V
• Gearbox: 37 mm diameter class (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-500TB 6V 30rpm Applications

• Winches and cable winding drums
• Slow conveyors and feeders
• Curtain, blind and window opener models
• Rotating stands and displays

What's in the Box

• 1 × DC Motor 37GB-500TB 6V 30rpm gear motor

Tip: Set the speed with PWM through a low-drop motor driver, and remember that the speed falls roughly in proportion if the battery voltage drops below 6 V.
