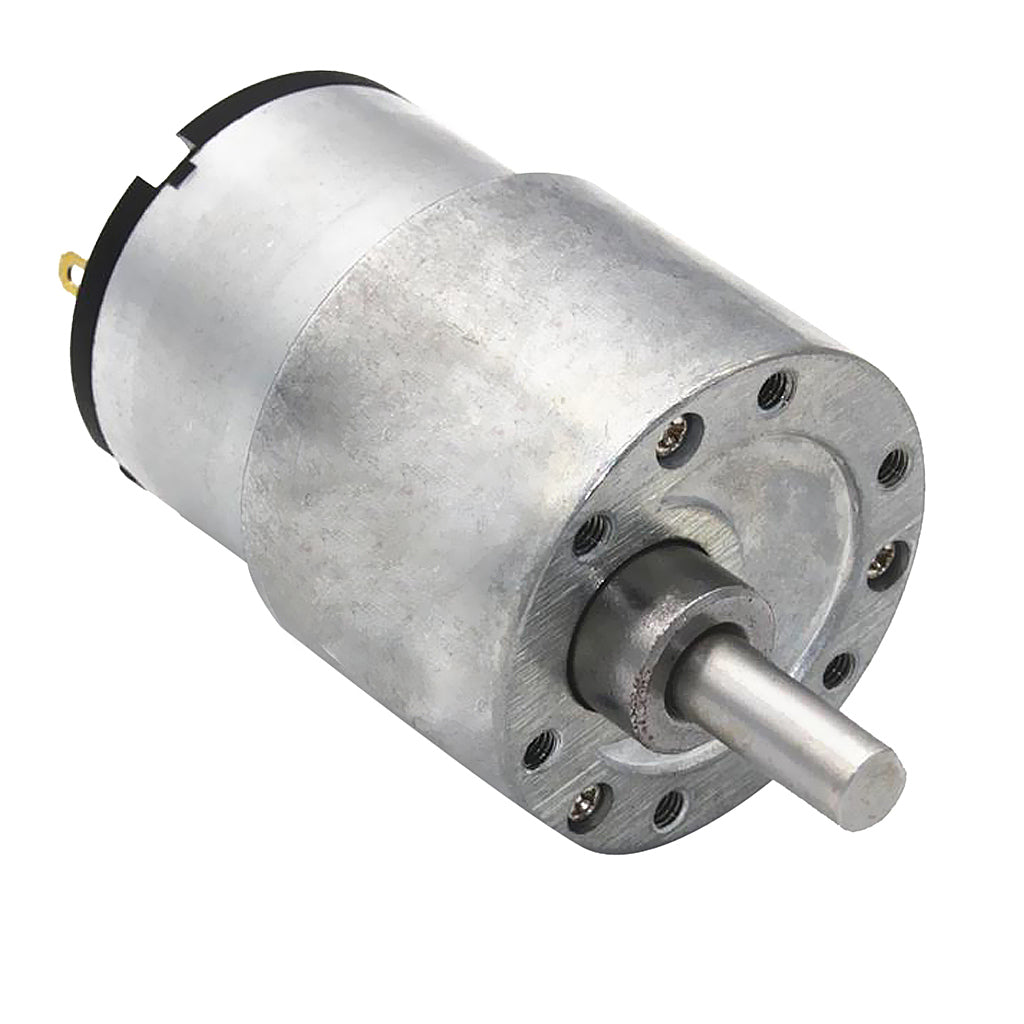

DC Motor 37GB-500TB 6V 40rpm

The DC Motor 37GB-500TB 6V 40rpm is a slow 6 V gear motor from the 37GB series, pairing a brushed DC motor with a reduction gearbox for an output of about 40 rpm. The low speed and geared output make it a good fit for lifting, turning and pulling mechanisms in battery-powered projects. It suits school robotics and DIY automation that run from 6 V.

DC Motor 37GB-500TB 6V 40rpm Specifications

• Model: 37GB-500TB gear motor
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 6 V DC
• Output speed: about 40 rpm at 6 V
• Gearbox: 37 mm diameter class (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-500TB 6V 40rpm Applications

• Small lifts and winches
• Robot arm joints and slow robot platforms
• Turntables and rotating displays
• Automatic door and gate models

What's in the Box

• 1 × DC Motor 37GB-500TB 6V 40rpm gear motor

Tip: Fit limit switches at the ends of travel for lifts and doors so the motor is not held stalled. Drive it through an H-bridge motor driver rated for 6 V and for the motor's stall current.
