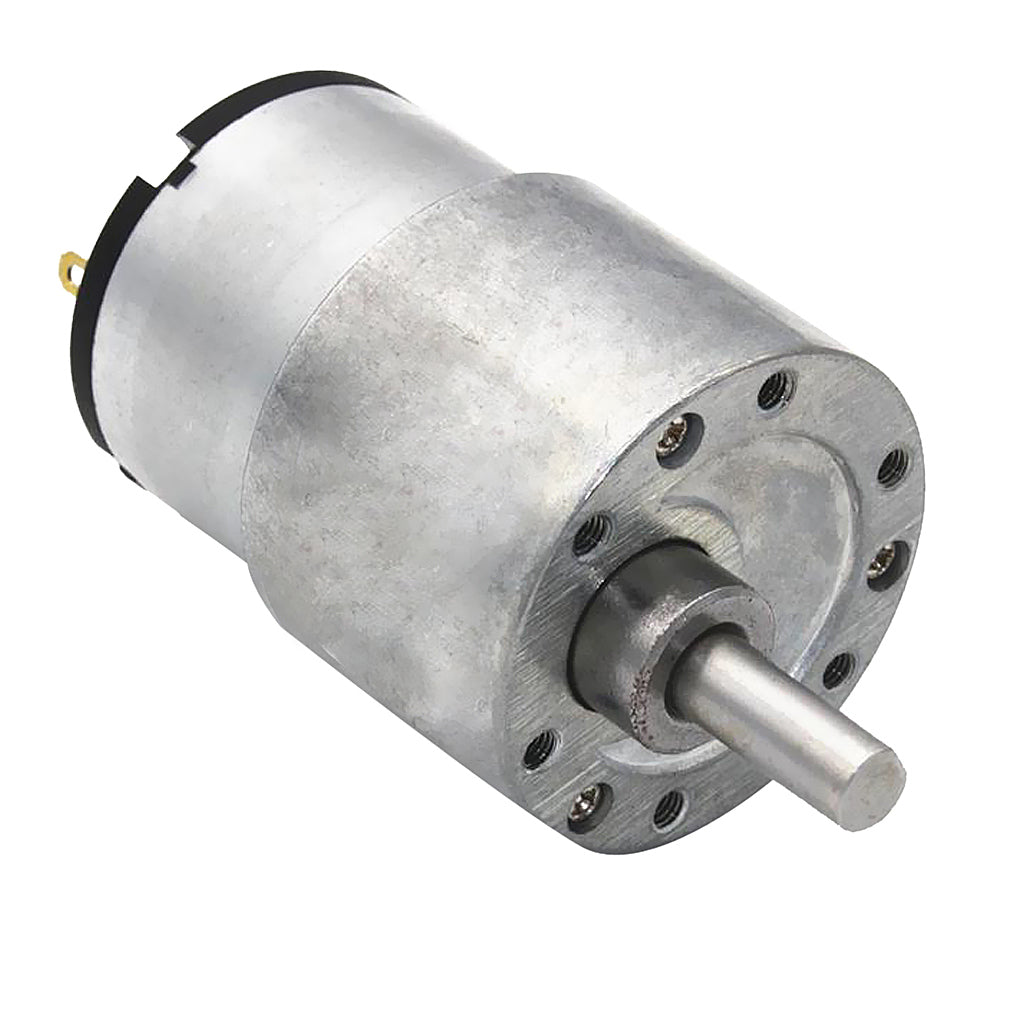

DC Motor 37GB-500TB 6V 50rpm

The DC Motor 37GB-500TB 6V 50rpm is a 6 V geared DC motor from the 37GB series, with a brushed motor and a reduction gearbox that turns the output shaft at about 50 rpm. The steady low speed is useful for robots and mechanisms that need control more than speed. It works well in battery-powered builds, automation models and classroom projects that run from 6 V.

DC Motor 37GB-500TB 6V 50rpm Specifications

• Model: 37GB-500TB gear motor
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 6 V DC
• Output speed: about 50 rpm at 6 V
• Gearbox: 37 mm diameter class (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-500TB 6V 50rpm Applications

• Drive wheels for slow, steady robot platforms
• Conveyor belts and sorting models
• Sliding door, gate and curtain openers
• Turntables and rotating displays

What's in the Box

• 1 × DC Motor 37GB-500TB 6V 50rpm gear motor

Tip: Choose a motor driver that loses little voltage, because a drop of 1–2 V matters on a 6 V motor. Set the speed with PWM and mount the motor firmly with a 37GB motor bracket.
