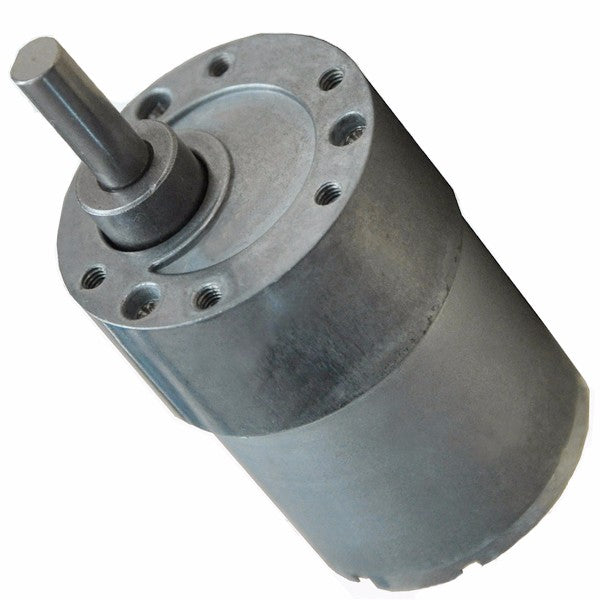

DC Motor 37GB-528 12V 10rpm

The DC Motor 37GB-528 12V 10rpm is a very slow DC gear motor from the 37GB series, made of a brushed DC motor and a 37 mm reduction gearbox. At 12 V its output shaft turns at 10 rpm, one full turn every 6 seconds. It is suited to slow, controlled movement such as camera pan heads, solar trackers, valve actuators and display turntables.

DC Motor 37GB-528 12V 10rpm Specifications

• Model: 37GB-528
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: 10 rpm at the gearbox shaft at 12 V
• Gearbox: 37 mm diameter (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-528 12V 10rpm Applications

• Camera pan heads and time-lapse rigs
• Solar trackers
• Valve, damper and gate actuators
• Display turntables
• Slow feeders and dosing mechanisms

What's in the Box

• 1 × DC Motor 37GB-528, 12 V 10 rpm

Tip: A DC motor has no built-in position control, so use limit switches or a potentiometer on the output as feedback for repeatable positions. Drive it through an H-bridge driver such as an L298N or BTS7960.
