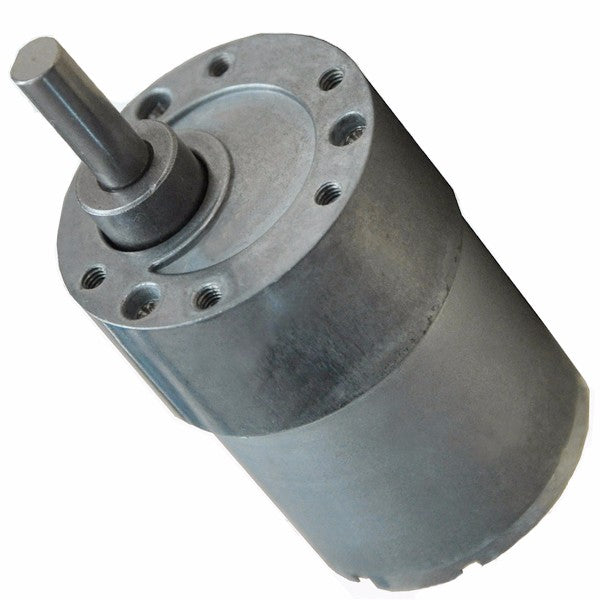

DC Motor 37GB-528 12V 150rpm

The DC Motor 37GB-528 12V 150rpm is a DC gear motor from the 37GB series that joins a brushed DC motor to a 37 mm reduction gearbox. Running at 12 V, its output shaft turns at 150 rpm, two and a half turns per second. This middle speed balances movement and torque, so it works well for medium-size robots, conveyors, door and gate models and rotating mechanisms.

DC Motor 37GB-528 12V 150rpm Specifications

• Model: 37GB-528
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: 150 rpm at the gearbox shaft at 12 V
• Gearbox: 37 mm diameter (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-528 12V 150rpm Applications

• Drive wheels for medium-size robots and smart cars
• Conveyor belts and production line models
• Automatic doors, gates and sliding mechanisms
• Rotating displays and mixers
• 12 V battery projects

What's in the Box

• 1 × DC Motor 37GB-528, 12 V 150 rpm

Tip: With a 65 mm wheel, 150 rpm works out to about 0.5 m/s. Use a 12 V H-bridge driver such as an L298N or BTS7960 and fix the motor with a 37GB motor bracket.
