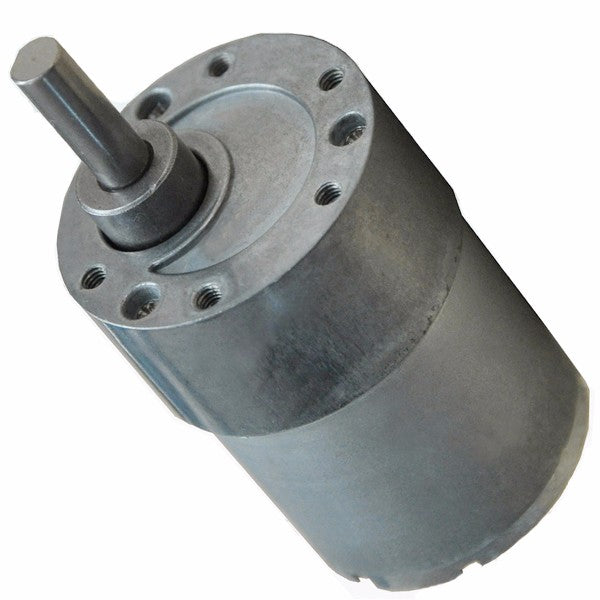

DC Motor 37GB-528 12V 300rpm

The DC Motor 37GB-528 12V 300rpm is a 12 V DC gear motor from the 37GB series, pairing a brushed DC motor with a 37 mm reduction gearbox. Its output shaft turns at 300 rpm, five turns per second, a quick speed that still keeps useful torque from the gearbox. It suits robot cars, conveyors, mixers and DIY machines running on 12 V batteries or adapters.

DC Motor 37GB-528 12V 300rpm Specifications

• Model: 37GB-528
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: 300 rpm at the gearbox shaft at 12 V
• Gearbox: 37 mm diameter (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-528 12V 300rpm Applications

• Drive wheels for robot cars and rovers
• Conveyor belts and pulley drives
• Mixers, stirrers and rotating tools
• Lead-screw and belt drives in DIY machines
• 12 V battery and solar projects

What's in the Box

• 1 × DC Motor 37GB-528, 12 V 300 rpm

Tip: Do not drive the motor straight from an Arduino or ESP32 pin. Use a motor driver such as an L298N or BTS7960, set the speed with PWM, and add a fuse in the 12 V battery line.
