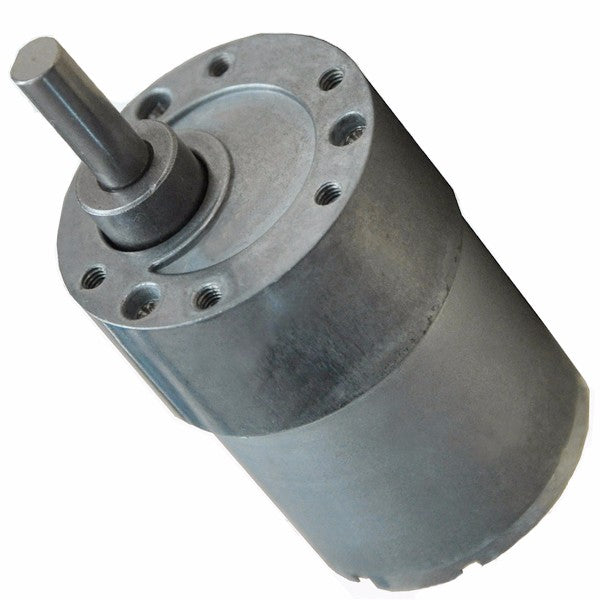

DC Motor 37GB-528 12V 30rpm

The DC Motor 37GB-528 12V 30rpm is a slow DC gear motor from the 37GB series, combining a brushed DC motor with a 37 mm reduction gearbox. At 12 V its output shaft turns at 30 rpm, one full turn every 2 seconds. The slow, strong output is a good fit for winches, lifts, gate openers, turntables and robot joints running from a 12 V battery or adapter.

DC Motor 37GB-528 12V 30rpm Specifications

• Model: 37GB-528
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: 30 rpm at the gearbox shaft at 12 V
• Gearbox: 37 mm diameter (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-528 12V 30rpm Applications

• Winches, hoists and lifting models
• Gate, door and window openers
• Turntables and rotating displays
• Robot arms, joints and slow rovers
• Feeder and dispensing mechanisms

What's in the Box

• 1 × DC Motor 37GB-528, 12 V 30 rpm

Tip: Choose a 12 V supply and a motor driver rated above the motor's start-up current, such as a BTS7960 module. PWM from the driver lets you slow the motor further for gentle starts and stops.
