DC Motor 37GB-528 12V 500rpm

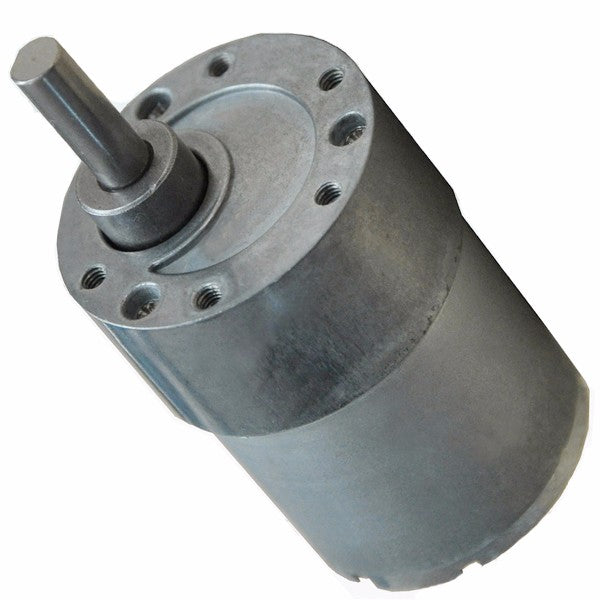

The DC Motor 37GB-528 12V 500rpm is a fast DC gear motor from the 37GB series, made of a brushed DC motor and a 37 mm reduction gearbox. At 12 V its output shaft turns at 500 rpm, more than eight turns per second. With a lower gear reduction than the slow versions, it trades some torque for speed, which suits fast robot cars, mixers, spinning mechanisms and belt drives.

DC Motor 37GB-528 12V 500rpm Specifications

• Model: 37GB-528
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: 500 rpm at the gearbox shaft at 12 V
• Gearbox: 37 mm diameter (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-528 12V 500rpm Applications

• Fast drive wheels for robot cars and competition robots
• Mixers, stirrers and spinning mechanisms
• Belt and pulley drives that need speed
• DIY machines and test rigs
• 12 V battery projects

What's in the Box

• 1 × DC Motor 37GB-528, 12 V 500 rpm

Tip: With a 65 mm wheel, 500 rpm works out to about 1.7 m/s, so start with a low PWM duty cycle while testing. Use a 12 V H-bridge driver such as an L298N for light loads or a BTS7960 for heavier ones.
