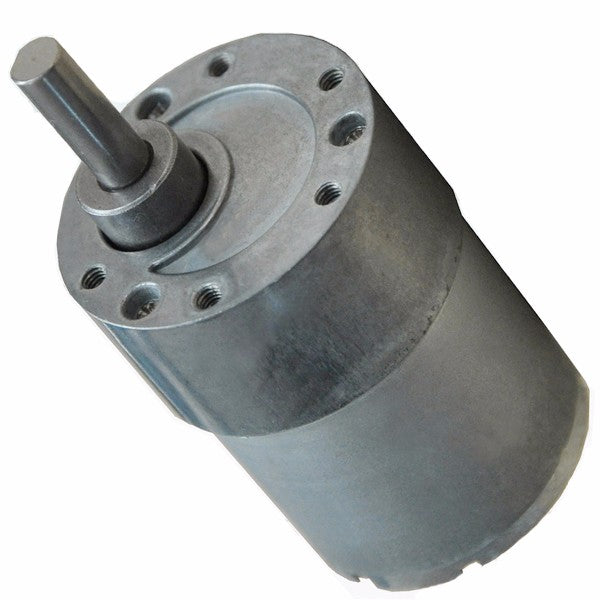

DC Motor 37GB-528 12V 5rpm

The DC Motor 37GB-528 12V 5rpm is a very slow DC gear motor from the 37GB series, which combines a brushed DC motor with a 37 mm reduction gearbox. Running at 12 V, its output shaft turns at 5 rpm, one full turn every 12 seconds. The gentle, steady motion suits rotating displays, time-lapse rigs, kinetic art and slow positioning drives.

DC Motor 37GB-528 12V 5rpm Specifications

• Model: 37GB-528
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: 5 rpm at the gearbox shaft at 12 V
• Gearbox: 37 mm diameter (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-528 12V 5rpm Applications

• Slow rotating displays and turntables
• Time-lapse camera rotators
• Kinetic art and moving models
• Solar trackers and positioning drives
• Slow valve and damper actuators

What's in the Box

• 1 × DC Motor 37GB-528, 12 V 5 rpm

Tip: Even at this speed the motor needs a driver such as an L298N, because its current is far more than a microcontroller pin can supply. Mount it with a 37GB motor bracket and add limit switches if the mechanism has end positions.
