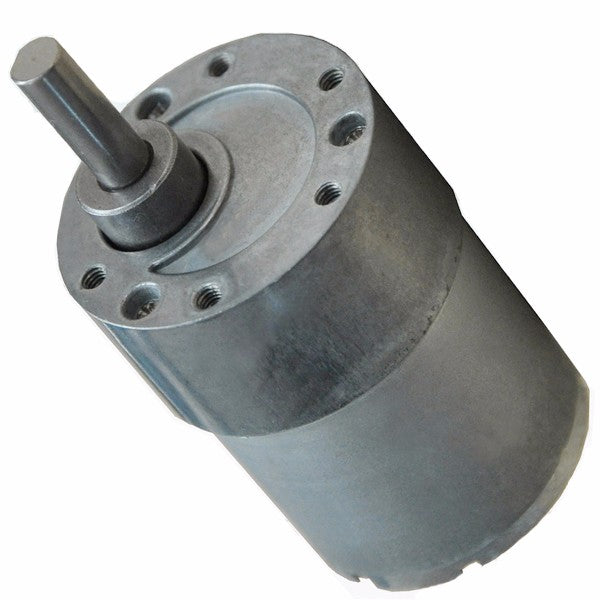

DC Motor 37GB-528 12V 80rpm

The DC Motor 37GB-528 12V 80rpm is a 12 V DC gear motor from the 37GB series, built from a brushed DC motor and a 37 mm reduction gearbox. Its output shaft turns at 80 rpm, a little over one turn per second, with the extra pulling power a higher gear reduction brings. It suits heavier robots, winches, turntables and sliding door mechanisms.

DC Motor 37GB-528 12V 80rpm Specifications

• Model: 37GB-528
• Type: brushed DC motor with reduction gearbox
• Rated voltage: 12 V DC
• Output speed: 80 rpm at the gearbox shaft at 12 V
• Gearbox: 37 mm diameter (37GB series)
• Direction: reversible by swapping the supply polarity
• Speed control: PWM through a motor driver

DC Motor 37GB-528 12V 80rpm Applications

• Drive wheels for heavier, slower robots
• Winches and cable pullers
• Turntables and rotating platforms
• Sliding doors, curtains and gate models
• Conveyor and feeder drives

What's in the Box

• 1 × DC Motor 37GB-528, 12 V 80 rpm

Tip: With a 100 mm wheel, 80 rpm works out to about 0.42 m/s. Drive the motor through an H-bridge driver rated above its start-up current, such as a BTS7960, and do not leave it stalled against a hard stop.
